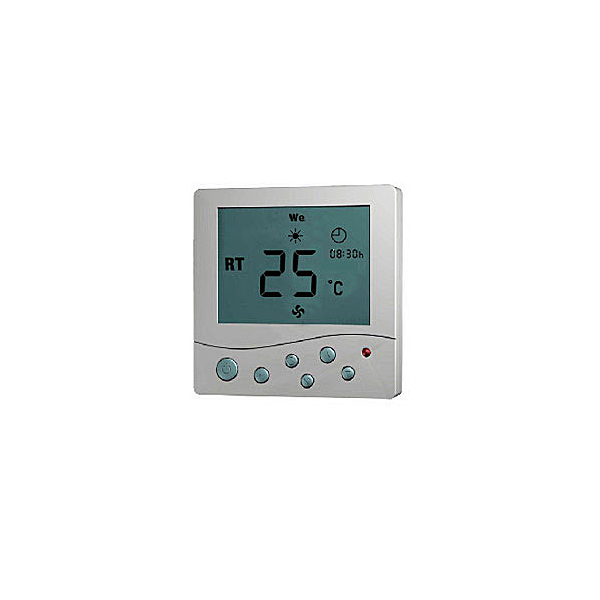

ADL2008 Series Digital Thermostat
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !
|
The ADL2008 series thermostats are stand-alone microprocessor based thermostats with LCD display. The thermostats are designed to on/off control the fans, valves, dampers or electric heaters in fan coil units, air-conditioners and heating applications. |
| Features: |
| Reliable output by relays |
| Attractive modern styling makes this thermostat ideal for locating in the occupied space |
| Digital LCD display of room ambient temperature and user selected temperature setting on demand |
| Adjustable heating/cooling/ventilating mode control |
| Adjustable manual 3-speed or automatic fan speed control and on/off control output for valve |
| Model available for cycling fan control |
| Infrared remote control available(optional |
| Backlight function available(optional) |
| Thermostat mounted directly onto a wall or standard junction box |
| Model available for 120, 230 VAC power input also |
| Reliable DC power supply by transformer |
| Main Functions |
| Manual/Auto Fan Speed | Blue Backlight Optional |
| Cool/Heat Change Control | Clock Optional |
| Room Temperature Setting |
Detect and Display Room Temp |
| Sleep Optional | Infrared Remote Control (Optional) |
| Low Temperature Protection | 5/2 or 7 days Programmable (Optional) |
| Specifications |
|
Sensor: |
NTC |
|
Set-point Range |
5~35℃ |
|
Accuracy |
±1℃ |
|
Power Consumption |
<2W |
|
Dimension |
86×86×13mm (W×H×D) |
|
Hole Pitch |
60mm |
|
Shell |
Fire retardant PC ABS |
|
Display |
LCD (65×48mm) |
|
Power Supply |
220VAC(or any other volt.)±15%, 50/60Hz |
|
Max Load |
Fan Coil<150W |
|
Heating Equipment |
<2.5KW |
