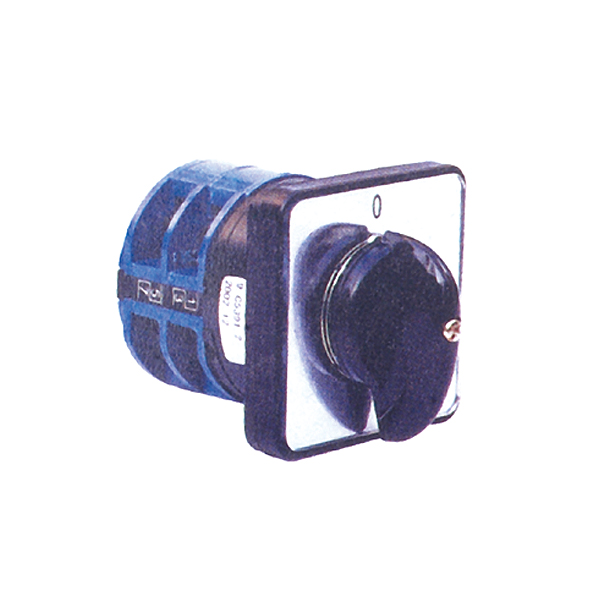

1.Working Conditions
Ambient temperature Do Not exceed 40C and the average temperature, measured over a
period of 24 hours, Do Not exceed 35C.
Ambient temperature should not be below -5C.
Should not be installed over 2000m above sea level.
The humidity should not exceed 50% when the ambient temperature is 40C and higher
humidity is allowed for lower temperature.

2.Installation Conditions
A clean environment is required.
Please follow our manual.

3.Dimensions
Dimensions and installation

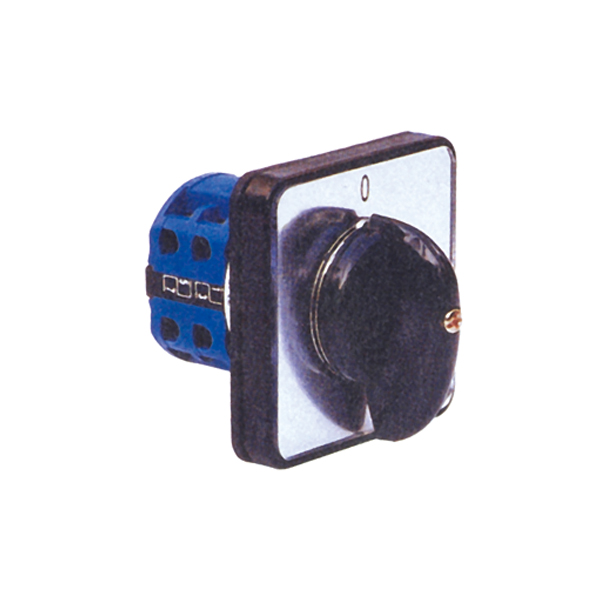

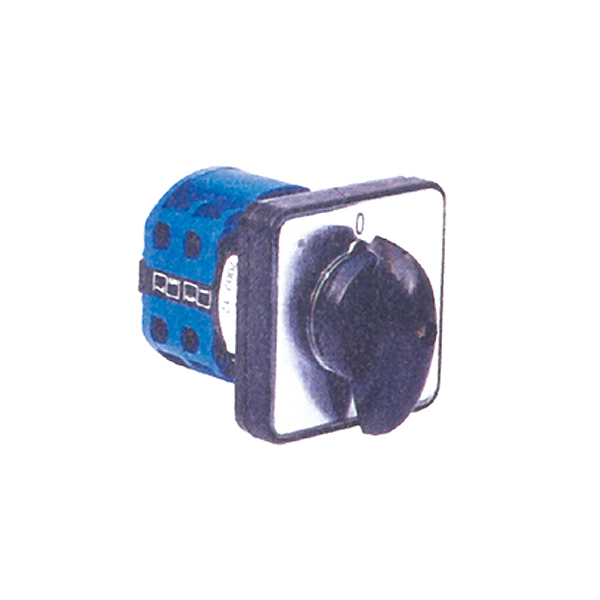

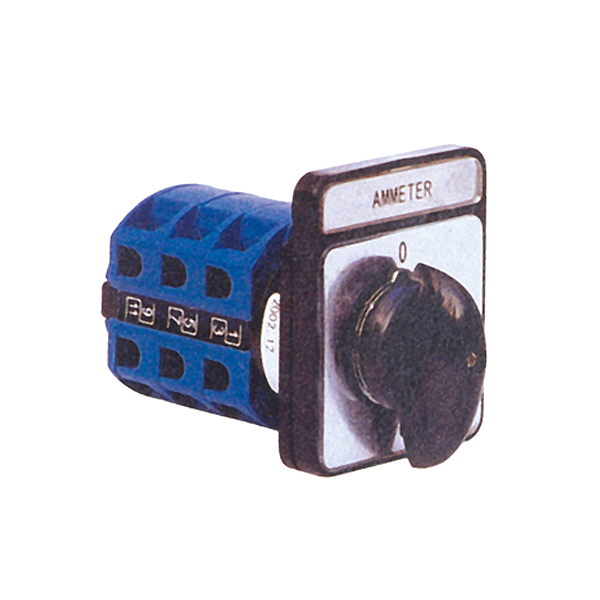

Square escutcheon plate and rectangular escutcheon plate

Description	Escutcheon plate	Dimension(mm)				Installation(mm)
		A	B	C	L	E	F	D1	D2
LW26-10	M0 square	30	30	28	22+8n	20		8	3.2
LW26X-10	M0 square	30	30	28	26.5+12n	20		8	3.2
LW26-20	M1 square	48	48	43	22+9.6n	36	36	8.5	4.5
	M1 rectangular	48	60	43	22+9.6n	36	36	8.5	4.5
	M2 square	64	64	43	25+9.6n	48	48	10	4.5
	M2 rectangular	64	80	43	25+9.6n	48	48	10	4.5
LW26X-20	M1 square	48	48	46	22+14n	36	36	8.5	4.5
	M1 rectangular	48	60	46	22+14n	36	36	8.5	4.5
	M2 square	64	64	46	25+14n	48	48	10	4.5
	M2 rectangular	64	80	46	25+14n	48	48	10	4.5
LW26-25	M1 square	48	48	45.2	23+12.8n	36	36	8.5	4.5
	M1 rectangular	48	60	45.2	23+12.8n	36	36	8.5	4.5
	M2 square	64	64	45.2	26.5+12.8n	48	48	10	4.5
	M2 rectangular	64	80	45.2	26.5+12.8n	48	48	10	4.5
LW26-32	M2 square	64	64	58	29.2+12.8n	48	48	10	4.5
	M2 rectangular	64	80	58	29.2+12.8n	48	48	10	4.5
LW26-32F	M1 square	48	48	48	23+14n	36	36	8.5	4.5
	M1 rectangular	48	60	48	23+14n	36	36	8.5	4.5
	M2 square	64	64	48	24.5+14n	48	48	10	4.5
	M2 rectangular	64	80	48	24.5+14n	48	48	10	4.5
LW26-63	M2 square	64	64	66	29.2+21.5n	48	48	10	4.5
	M2 rectangular	64	80	66	29.2+21.5n	48	48	10	4.5
	M3 square	88	88	66	29.2+21.5n	68	68	13	4.5
	M3 rectangular	88	107	66	29.2+21.5n	68	68	13	4.5
LW26-125	M3 square	88	88	84	35+26.5n	68	68	13	6
	M3 rectangular	88	107	84	35+26.5n	68	68	13	6
LW26-160	M3 square	88	88	88	35+26.5n	68	68	13	6
	M3 rectangular	88	107	88	35+26.5n	68	68	13	6
