1.Application
NT low voltage H.R.C. fuse features light in weight, small in size, low in power loss and high in breaking capacity. This product has been widely used in overload and short circuit protection of electric installation. This product conforms to IEC 60269 standards with all of the rating at the world advanced level.

2.Specifications

Type		Fuse link				Fuse base
Type	Rated current (A)	Rated voltage (V)	Rated power loss (W)	Weight (kg)	Type	Rated current (A)	Weight (kg)

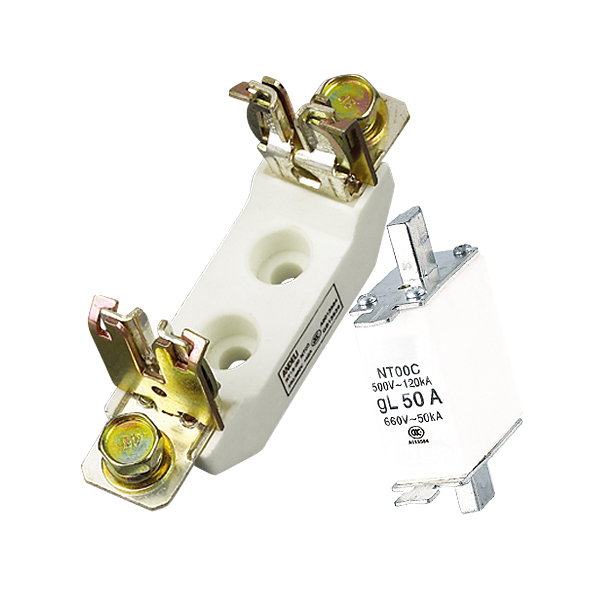

NT00C	2	500, 600	0.41	0.15	Sist 101	160	0.2
	4		0.62
	6		0.81
	10		1.08
	16		1.60
	20		1.81
	25		2.31
	32		3.07
	36		3.17
	40		4.05
	50		4.25
	63		4.70
	80		5.7
	100		7

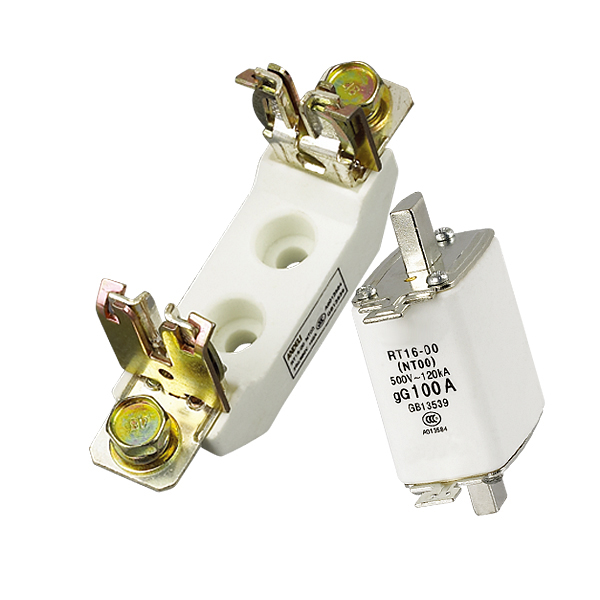

NT00	4	500, 600	0.67	0.15	Sist 101	160	0.2
	6		0.89
	10		1.14
	16		1.65
	20		1.94
	25		2.50
	32		3.32
	36		3.56
	40		4.30
	50		4.5
	63		4.6
	80		6
	100		7.3
	125	500	7.6
	160	500	9.6

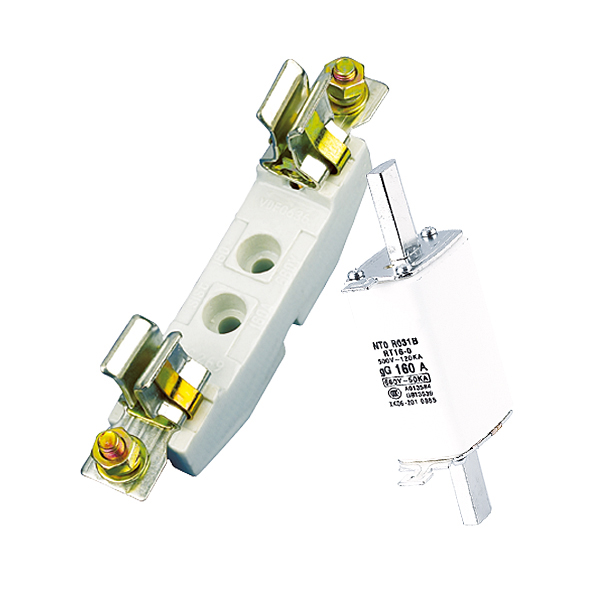

NT0	6	500, 600	1.03	0.2	Sist 160	160	0.32
	10		1.42
	16		2.45
	20		2.36
	25		2.7
	32		3.74
	35		4.3
	40		4.7
	50		5.5
	63		6.9
	80		7.6
	100		8.9
	125	500	10.1
	160	500	15.2

Type	Fuse link				Fuse base
Type	Rated current (A)	Rated voltage (V)	Rated power loss (W)	Weight (kg)	Type	Rated current (A)	Weight (kg)

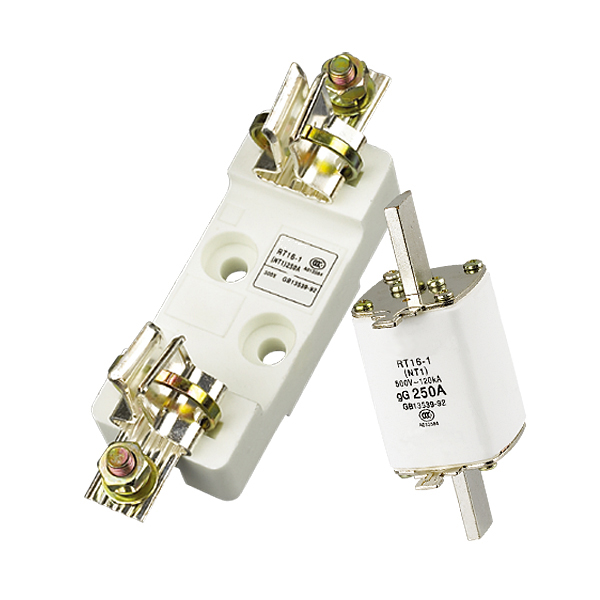

NT1	80	500, 600	6.2	0.36	Sist 201	250	0.8
	100		7.5
	125		10.2
	160		13
	200		15.2
	224	500	16.8
	250	500	18.3

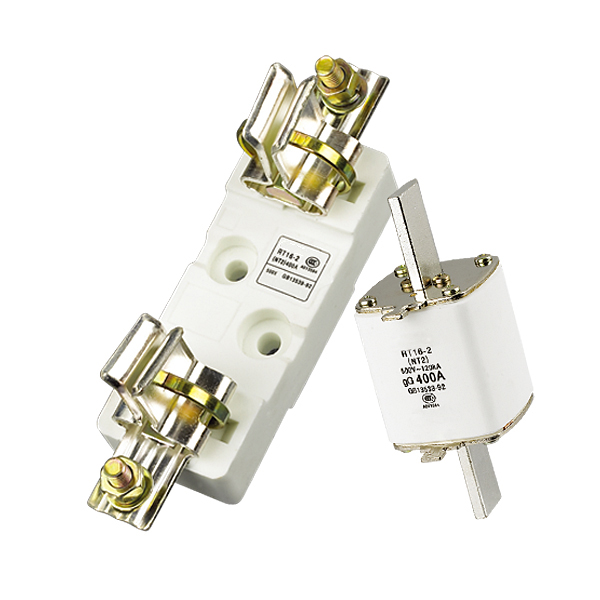

NT2	125	500, 600	9	0.65	Sist401	400	1.2
	160		11.5
	200		15
	224		16.6
	250		18.4
	300		21
	315		19.2
	355		24.5
	400		26

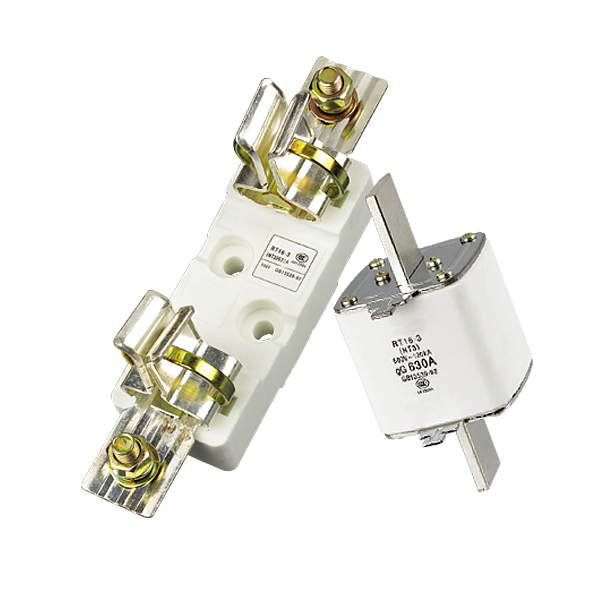

NT3	315	500, 600	21.7	0.85	Sist601	630	1.5
	355		22.7
	400		26.8
	425		28.9
	500	500	32
	630	500	40.3

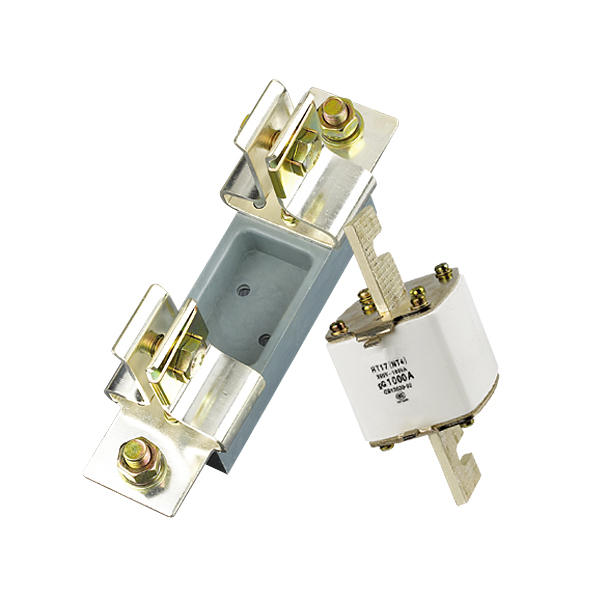

NT4	800	380	62	1.95	Sist1001	1000	3.45
NT4	1000	380	75	1.95	Sist1001	1000	3.45
