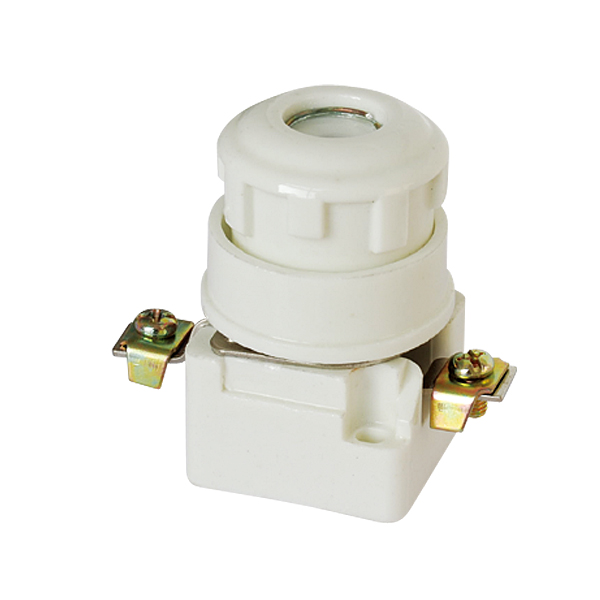

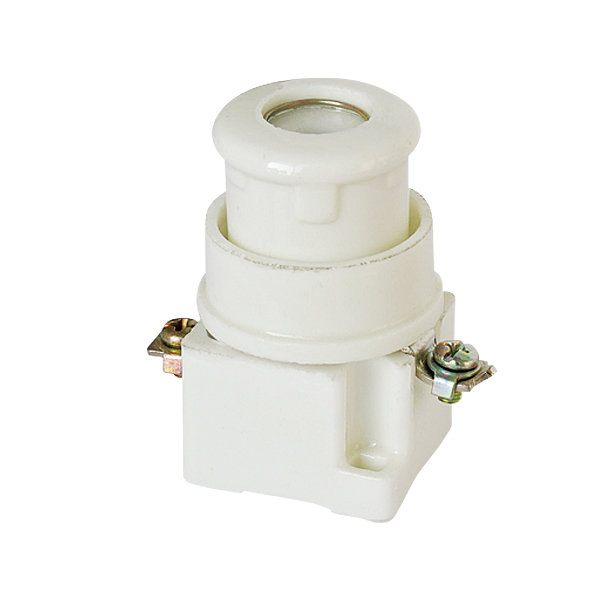

Fuse Base
 |
 |
 |
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !1.Specifications
| Model | RL6-25 | RL6-63 |
|---|---|---|
| Rated Voltage | 500V | 500V |
| Rated Current of Fuse | 25A | 63A |
| Rated Current of Fusant | 2,4,6,10,16,20,25A | 35,50,63A |
| Rated Breaking Current | 50KA cos=0.1-0.2kg | 50KA cos=0.1-0.2kg |
| Overall dimension | 66 x 43 x 80 | 89 x 54 x 82 |
| Weight | 0.20kg | 0.25kg |
