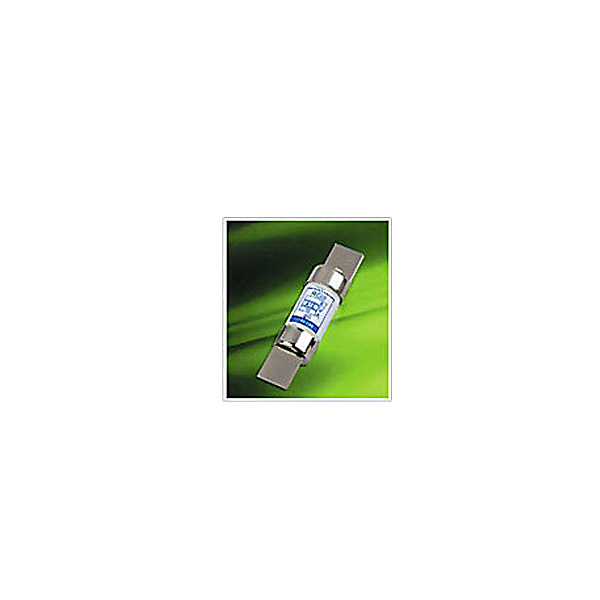

Bolt Connected Fuse Links

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

Types				Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours		Equivalents					Dimension(mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)				ΦA	C	ΦD	E	F
RG0	RGS0	NS	--	415	1-32	15.2	32	59	13.5	11	0.8
RG0D	RGS0D	NS	--	415	40-63	24	39	69	17.5	15	1.2

Types				Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours		Equivalents					Dimension(mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)				A	B	C	ΦD	E	F	H	Φd
RGOK	RGSOK	NIT	--	415	1-32	14.4	34	45	55	13.5	11	0.8	14.5	5
RG2	RGS2	TIS RT12-63	--	500	40-100	73.8	56	75	88	25.5	13	1.2	27	6.5

Types				Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours		Equivalents					Dimension(mm)

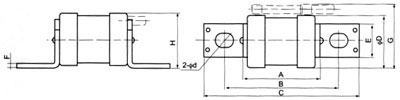

General (gG)	Fast(aR)	General (gG)	Fast(aR)				A	B	C	ΦD	E	F	H	Φd
RG4(Z)	RGS4(Z)	--	--	660/1000	63	35	49.5	63	77	16.5	12.5	2	18	6.5*9
--	RGS7	--	--	500	100	280	59	83	110	38	25	3	41	11*4
--	RGS7(Z)	--	--	500	100	295	59	83	110	38	25	3	41	11*4

Types				Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours		Equivalents					Dimension(mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)				A	B	C	ΦD	E	F	H	Φd
RG1	RGS1	TIA	--	500	4-35	55	54	73	85	22	9.5	1.5	25	5.5*7.5
RG3	RGS3	--	--	500	6-63	51.1	54	73	85	22	9.5	1.5	25	5.5*7.5
RG4	RGS4	--	GSG	660/1000	10-63	32	49.5	63	77	16.5	12.5	2.0	18	6.5*9
RG6	RGS6	--	GSA	500	80	146	68	93	112	31	19	2.0	33	9*11.5
RG7	--	TCP	--	500	100	228	68	95	114	34	19	2.0	35	9*11.5
RG7A	RGS7A	--	PC10D	500	110-150	178	57	99	119	38	24	3.0	40	5
RG11	RGS11	--	CR2L GSB	250/380	16-75	25	27.5	42	56	16.5	12.5	2.0	17.5	6.5*9
RG12	RGS12	--	CR2L GSB	250/500	75-175	79.5	31.5	58	80	26	19	3.0	27	9*11.5
RG14	RGS14	--	GSB	500	5-20	55	31	37	46	8.5	7	0.8	9.5	4.5*6
RG14B	RGS14B	--	GSB	500	5-20	8.5	54	64	73	8.5	7	0.8	9.5	4.5*6
RG15	RGS15	--	CR2L GSB	250/500	200	120	34	60	88	30	25	3.0	36	11*13
RG17	RGS17	--	GSB	500	40-100	62.3	54	78	96	22.2	20.5	2	24	9*12
RG18	RGS18	--	CR6L	600	75-150	14.7	40	70	95	30	25	3.2	33	11*13
RG19	RGS19	--	CR6L	600	200-250	219	43	82	107	37	30	4.0	42	11*13
RG0H	--	AAO		500	2-32	18	34	72	84	13.5	9.4	1.2	15	5.5*7.8
RG4AD	RGS4AD	--	250GH	250	32-160	39	29	56	77	23.8	20	3	25.5	9*14
RG4A	RGS4A	--	660GH	660	125-200	53	50	77	98	23.8	20	3	25.5	9*14
RG4B	RGS4B	--	660GH	660	225-315	75	50.5	82	108	31	25	3	34	10.5*16

Types				Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours		Equivalents					Dimension(mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)				A	B	C	ΦD	E	F	H	Φd
RG2-1	RGS2-1	--	PC63	500	32-63	81	51	80	98	25	19	2.0	28.5	9
RG5	RGS5	--	GSB	1200	6-32	91	110	121	138	26	13	1.5	27	6.5
RG5-1	RGS5-1	--	--	1200	16-75	98	107.5	127	140	25.5	13	1.3	28	6.5*9
RG5D	RGS5D	--	GSB	1200	32-63	107	110	124	138	26	13	1.5	27	6.5
RG13	RGS13	--	PC25	500	2-25	37	57	75	91	15	13	1.5	20.5	6.5
RG16	RGS16	--	GSB	500	25-40	29	56	78	95	14	13	1.5	17	6.5

Types				Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours		Equivalents					Dimension(mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)				A	B	C	ΦD	E	F	Φd
RG8	RGS8	TC	--	415/550	125-160	212	63.5	110	135	38	19	3.0	8.5*15
RG8B	RG8B	--	--	415/550	80-100	60.9	60	74	94	22	20	3.0	6*9
RG9	RG9	RT15-200/B2	--	415/550	200	24.2	74	110	135	40	19	3	9.5*15
RG10	RGS10	RT15-350/B3	--	415/550	250-350	451	76	112	138	53	25	3	9*15
RG10B	RGS10B	TM	--	415/550	355-400	563	73.5	110	135	60	25	4	8.5*15

Types				Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours		Equivalents					Dimension(mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)				A	B	C	ΦD	E	F	Φd
RG77	RGS77	--	GSG	660/1000	100-500	455	58	85	110	38	25	6	11*14
RG77YK	RGS77YK	--	--	660/1000	100-500	495	58	110	137	38	25	6	10.5*22
RG77F	RGS77F	--	--	660/1000	100-350	335	46	80	104	34.5	25	6	10*16
RG19	RGS19	--	CR6L	600	600	219	43	97	122	36.5	30	8	11*13

Types

Rated voltage(V)

Rate current(A)

Weight(g)

Dimension(mm)

Ours

Equivalents

General (gG)

Fast(aR)

General (gG)

Fast(aR)

RG8M

RGS8M

415/550

80-315

507

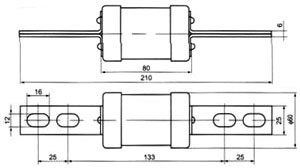

See picture

Types				Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours		Equivalents
General (gG)	Fast(aR)	General (gG)	Fast(aR)

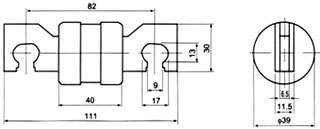

RG10C	RGS10C	--	--	500/1000	415/630	840	See picture

Types				Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours		Equivalents
General (gG)	Fast(aR)	General (gG)	Fast(aR)

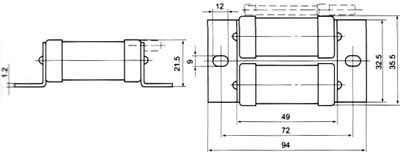

RG44(Z)	RGS44(Z)	--	GSG	660/1000	75-160	78	See pictrue
