Types |
Size |
Rated voltage(V) |
Rate current(A) |
Weight(g) |
Dimension(mm) |
|
Ours |
Equivalents |
|
General (gG) |
Fast(aR) |
General (gG) |
Fast(aR) |
ΦA |
ΦB |
ΦC |
L |
|
RL1-15 |
RLS1-15 |
-- |
-- |
-- |
380 |
2-15 |
13 |
13 |
16.5 |
13 |
32 |
|
RL1-60 |
RLS1-60 |
-- |
-- |
-- |
380 |
20-60 |
6.1 |
19 |
26.5 |
19. |
49 | |
|
|
|
|
Types |
Size |
Rated voltage(V) |
Rate current(A) |
Weight(g) |
Dimension(mm) |
|
Ours |
Equivalents |
|
General (gG) |
Fast(aR) |
General (gG) |
Fast(aR) |
ΦA |
ΦB |
ΦC |
ΦD |
L |
|
RL1-100 |
RLS1-100 |
-- |
-- |
-- |
380 |
50-100 |
92.8 |
6.5 |
27.5 |
32.5 |
27.5 |
60 |
|
RO201 |
RS201 |
5SB BLA
RL6-100 |
-- |
DIV |
500 |
80 |
112.2 |
5 |
-- |
33.5 |
28.5 |
63 |
|
100 |
115 |
7 |
-- |
33.5 |
28.5 |
63 |
|
RO202 |
RS202 |
5SB BLA |
-- |
DV |
600 |
150-350 |
200.2 |
8 |
-- |
45 |
38 |
63 |
|
RO203 |
RS203 |
5SB BLA |
-- |
-- |
600 |
400-630 |
320 |
10 |
-- |
60 |
50 |
63 | |
|
|
|
|
Types |
Size |
Rated voltage(V) |
Rate current(A) |
Weight(g) |
Dimension(mm) |
|
Ours |
Equivalents |
|
General (gG) |
Fast(aR) |
General (gG) |
Fast(aR) |
|

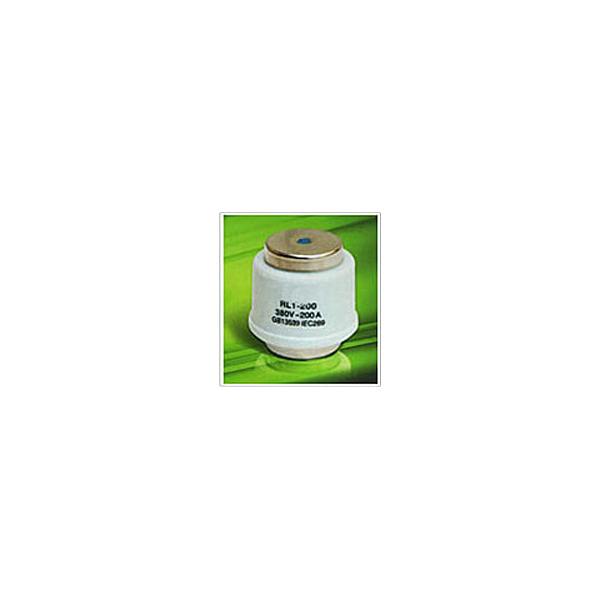

RL1-200 |
RLS1-200 |
-- |
-- |
-- |
380 |
160-200 |
204 |
See picture | |
|
|
|
|
Types |
Size |
Rated voltage(V) |
Rate current(A) |
Weight(g) |
Dimension(mm) |
|
Ours |
Equivalents |
|
General (gG) |
Fast(aR) |
General (gG) |
Fast(aR) |
ΦA |
ΦC |
ΦD |
L |
|
RO21 |
RS21 |
5SB E27
RL6-25 |
5SD |
DII |
500 |
2-6 |
24.8 |
6 |
22 |
13 |
50 |
|
8-10 |
8 |
22 |
13 |
50 |
|
13 |
8 |
22 |
15 |
50 |
|
16 |
10 |
22 |
15 |
50 |
|
20 |
12 |
22 |
15 |
50 |
|
25 |
14 |
22 |
15 |
50 |
|
RO22 |
RS22 |
5SB E33
RL6-63 |
5SD |
DIII |
500 |
30-40 |
48.1 |
16 |
27 |
20 |
50 |
|
50 |
18 |
27 |
20 |
50 |
|
63 |
20 |
27 |
20 |
50 |
|
RO23 |
RS23 |
-- |
-- |
DIII |
500 |
2-6 |
64 |
6 |
27 |
20 |
70 |
|
8-10 |
8 |
27 |
20 |
70 |
|
16 |
10 |
27 |
20 |
70 |
|
20 |
12 |
27 |
20 |
70 |
|
25 |
14 |
27 |
20 |
70 |
|
35 |
15 |
27 |
20 |
70 |
|
50 |
18 |
27 |
20 |
70 |
|
63 |
20 |
27 |
20 |
70 |
|
RO24 |
RS34 |
E16
5SA |
-- |
-- |
500 |
2-6 |
11.7 |
6 |
12.5 |
11.3 |
50 |
|
10 |
8 |
12.5 |
11.3 |
50 |
|
16 |
10 |
12.5 |
11.3 |
50 |
|
20-25 |
12 |
12.5 |
11.3 |
50 |
|
RO27 |
RS27 |
BLA |
BLC |
-- |
600 |
3-10 |
13.1 |
8 |
12.5 |
11.5 |
50 |
|
RO28 |
RS28 |
BLA |
BLC |
-- |
600 |
15-20 |
14.5 |
10 |
12.5 |
11.5 |
50 |
|
RO29 |
RS29 |
BLA |
BLC |
-- |
600 |
25-40 |
16.4 |
14 |
12.5 |
11.5 |
50 | |
|
|
|
|
Types |
Size |
Rated voltage(V) |
Rate current(A) |
Weight(g) |
Dimension(mm) |
|
Ours |
Equivalents |
|
General (gG) |
Fast(aR) |
General (gG) |
Fast(aR) |
ΦA |
ΦB |
ΦC |
ΦD |
L |
|
RO26 |
RS26 |
E14
RL8
5SE
E18 |
-- |
D01 |
400 |
2-6 |
12.7 |
5 |
7.3 |
10.6 |
10 |
36 |
|
10 |
5 |
8.5 |
10.6 |
10 |
36 |
|
16 |
5 |
9.7 |
10.6 |
10 |
36 |
|
D02 |
400 |
20 |
13.8 |
8.5 |
11 |
15 |
14 |
36 |
|
25 |
8.5 |
12 |
15 |
14 |
36 |
|
35 |
8.5 |
13.3 |
15 |
14 |
36 |
|
50 |
8.5 |
14.5 |
15 |
14 |
36 |
|
63 |
8.5 |
16 |
15 |
14 |
36 |
|
D03 |
400 |
80 |
15.6 |
17 |
22 |
22 |
21 |
43 |
|
100 |
17 |
25 |
22 |
21 |
43 | |
|
|
|
|
Types |
Size |
Rated voltage(V) |
Rate current(A) |
Weight(g) |
Dimension(mm) |
|
Ours |
Equivalents |
|
General (gG) |
Fast(aR) |
General (gG) |
Fast(aR) |
|
RL5-40 |
-- |
-- |
-- |
-- |
1140 |
2-40 |
22 |
See picture | |
