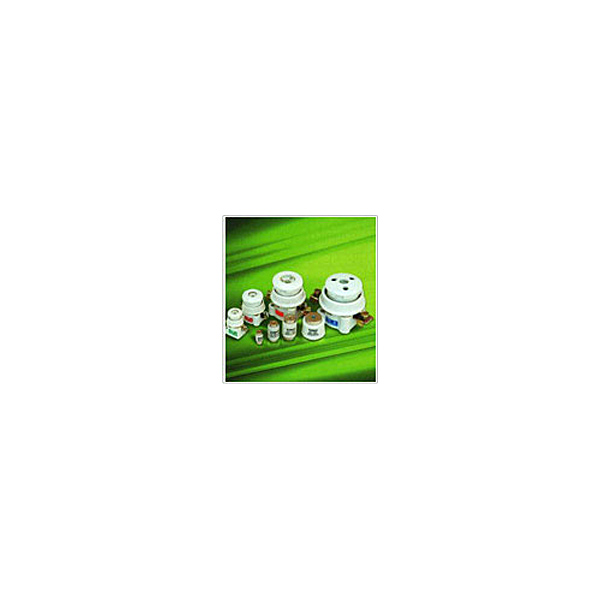

Screw Fuse Bases

Return

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

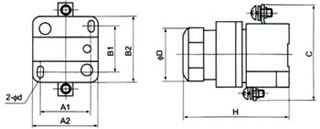

RL1-15

Types	Matching with fuse		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Types	Size	Type	Rated voltage(V)	Rate current(A)	Weight(g)	A1	A2	B1	B2	C	H	ΦD	Φd
RL1-15	--	RL1-15	380	15	116	24	35	28	41	64	60	33	5
RL1-60	--	RL1-60	380	60	243	34	55	41	55	78	70	48	6
RL1-100	--	RL1-100	380	100	798	45	83	53	83	120	100	70	8
RL1-200	--	RL1-200	380	200	1460	63	87	64	87	152	110	85	10

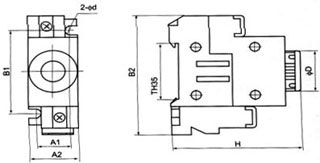

RO(FB)21

RO(FB)21

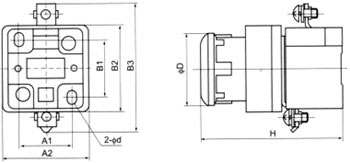

Types	Matching with fuse		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Types	Size	Type	Rated voltage(V)	Rate current(A)	Weight(g)	A1	A2	B1	B2	B3	H	ΦD	Φd
RO(FB)21	DII	RL6-25	500	25	159	27	45	30	45	68	72	38.5	5*6
RO(FB)22	DIII	RL6-63	500	63	265	38	53	33	54	85	80	48	5*6
RO(FB)23	DIV	RL6-100	500	100	840	55	64	45	73	121	115	75	7*9
FB24	--	RO(S)24	600	25	118	25	35	22	33	56	68	30	4*6

RO(FB)21-3J

RO(FB)21-3J

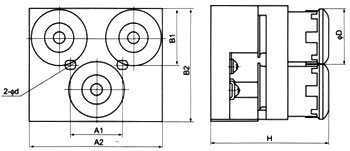

Types	Matching with fuse		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Types	Size	Type	Rated voltage(V)	Rate current(A)	Weight(g)	A1	A2	B1	B2	B3	H	ΦD	Φd
RO(FB)21-3J	DII	RO21	500	25	604	37	90	42	77	79	79	38	5*7
RO(FB)22-3J	DIII	RO22	500	63	860	37	110	48	95	80	80	48	6*10

RO(FB)21-3J

RL1-15

Types	Matching with fuse		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
	Size	Type

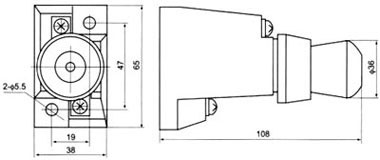

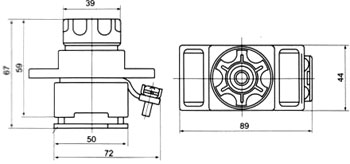

FB26-16-3J	D01	RL8B	500	16	286	See picture
FB26-63-3J	D02	RL8B	500	63	295

RO(FB)21-3J

RL1-15

Types	Matching with fuse		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
	Size	Type

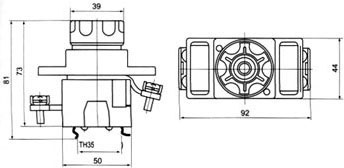

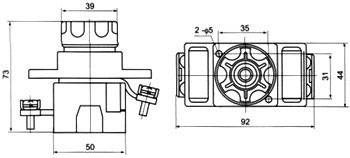

FB26D-63	D02	RO26	500	63	114	See picture

RO(FB)21-3J

RL1-15

Types	Matching with fuse		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Types	Size	Type	Rated voltage(V)	Rate current(A)	Weight(g)	A1	A2	B1	B2	H	ΦD	Φd

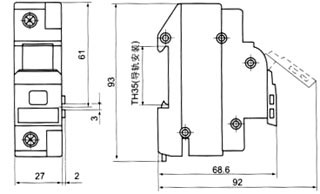

FB26-16	D01	RL8B	500	16	83	--	18	--	55	59	17	--
FB26-63	D02	RL8B	500	63	86	20	27	54	77	72	26	5

FB26A-63

FB26A-63

Types	Matching with fuse		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
	Size	Type

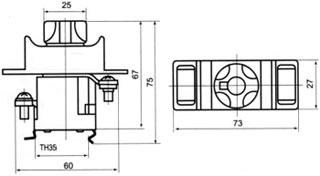

FB26A-63	--	RO26	500	63	63	See picture

FB26B-63

Types	Matching with fuse		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
	Size	Type

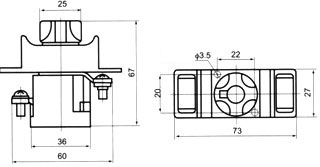

FB26B-63	--	RO26	500	63	80	See picture

FB26C-63

FB26C-63

Types	Matching with fuse		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
	Size	Type

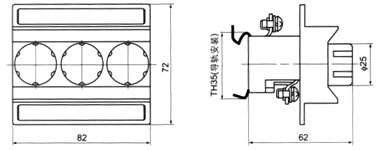

FB26C-63	--	RO26	500	63	74	See picture

FB26A-100

FB26A-100

Types	Matching with fuse		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
	Size	Type

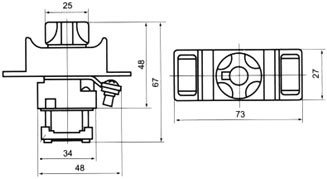

FB26A-100	--	RO26	500	100	194	See picture

FB26B-100

FB26B-100

Types	Matching with fuse		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
	Size	Type
FB26B-100	--	RO26	500	100	228	See picture

FB26C-100

FB26C-100

Types	Matching with fuse		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
	Size	Type
FB26C-100	--	RO26	500	100	226	See picture

RL5

RL5

Types	Matching with fuse		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
	Size	Type
RL5	--	--	1140	25	260	See picture
