Wholly-scope High-voltage limit-current fuse for protection
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !
   |
| Product Introduction :
|
|
This product can be used in indoor system of 50Hz and rated voltage 12KV.lt can break any problem current between the fuse melting current and the rated break current.it has the current limit fuse merit of good break;it has also the non-current limit fuse of small current protection.An overall break protection can be achieved. |
|
|

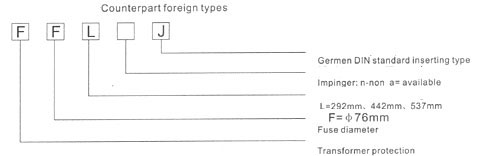

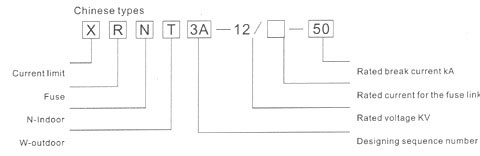

| Type :
|
  |
| |||||||||||||||||||||||||||||||||

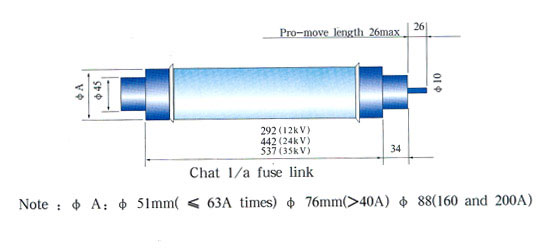

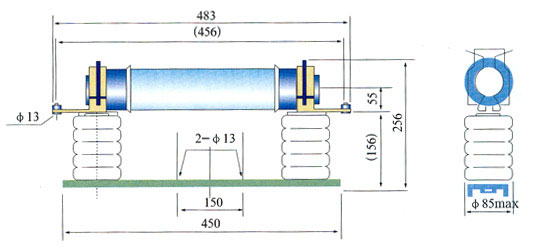

| Lnstallation Dimensios:
|
 |
|
|
|
Type |
Un(KV) | In(A) | D(mm) | International feference model |
|
XRNT |
12 | 10 | 76 | FFLAj |
| 16 | ||||
| 20 | ||||
| 31.5 | ||||
| 40 | ||||
| 50 | ||||
| 63 | ||||
| 80 | 88 | |||
| 100 | ||||

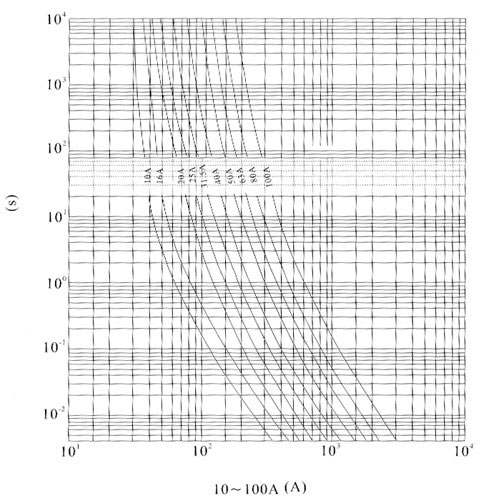

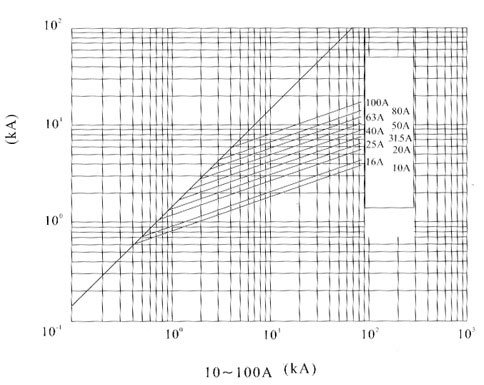

| Property Cure Diagram :
|
 |
