Lightning Arrester
 |
 |
Add to Inquiry Basket
View Inquiry Basket

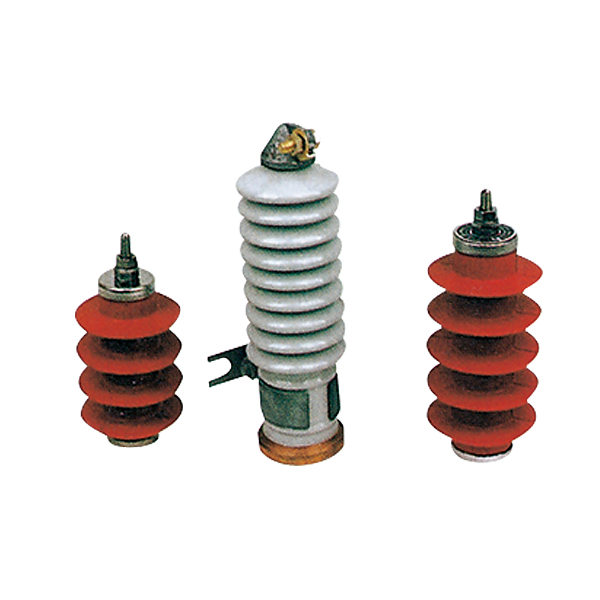

The products that you selected had been put into inquiry basket !1.YHWS1 Lightning Arrester

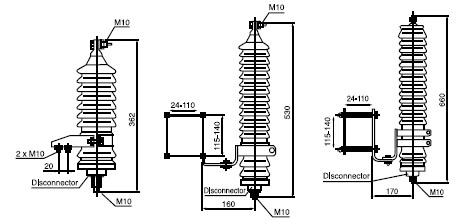

2.Dimension

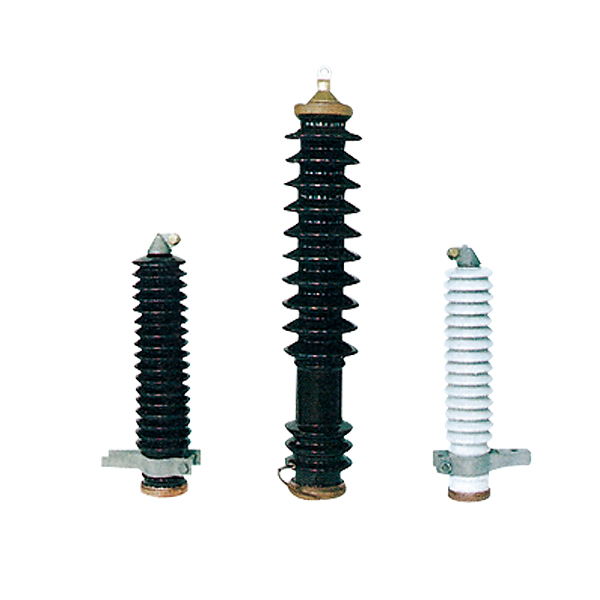

3.Y5C-Y10C Lightning Arrester
| Type | System Rated Voltage (KV) | Lightning Arrester Rated voltage (KV) | Lightning Arrester Continuous Operating Voltage (KV) | DC 1mA Voltage (KV) | Nominal Discharge Current Wire (KV) | Square Wage Impulse Current Endurance (A) |
|---|---|---|---|---|---|---|
| YHWS-3.8/17 | 3 | 3.8 | 2.0 | 7.5 | 17 | 100 |
| YHWS-7.3/30 | 6 | 7.6 | 4.0 | 15 | 30 | 100 |
| YHWS-10/30 | 6 | 10 | 4.0 | 15 | 30 | 100 |
| YHWS-12.7/50 | 10 | 12.7 | 6.6 | 25 | 50 | 100 |
| YHWS-17/45 | 10 | 17 | 12.7 | 25 | 50 | 100 |
2.Dimension
3.Y5C-Y10C Lightning Arrester
| Type | Rated Voltage (KV) | Power Frequency Discharge Current ≤KV |
Impulse Discharge Voltage ≥KV | 8/20 S Residual Voltage for Lightning Impulse ≤KV | Square Wave Through Discharge (A) | 8/20 S Impulse Max Current 20 Times (KV) | Front-of-Wave Impulse Max Sparkover Voltage (KV) |
|---|---|---|---|---|---|---|---|
| Y5C-15 | 15 | 26 | 47 | 57 | 100 | 40 | 47 |
| Y10C-15 | 15 | 26 | 43 | 51 | 150 | 65 | 43 |
| Y5C-18 | 18 | 33 | 48 | 57 | 100 | 40 | 66 |
| Y10C-18 | 18 | 33 | 48 | 60 | 200 | 65 | 70 |
| Y5C-24 | 24 | 40 | 66 | 80 | 100 | 40 | 88 |
| Y10C-24 | 24 | 40 | 66 | 80 | 200 | 65 | 92 |
| Y5C-33 | 33 | 56 | 100 | 123 | 100 | 40 | 100 |
| Y10C-33 | 33 | 56 | 93 | 113 | 200 | 65 | 93 |
| Y5C-36 | 36 | 61 | 106 | 133 | 100 | 40 | 106 |
| Y10C-36 | 36 | 61 | 99 | 120 | 200 | 65 | 99 |
