Voltage mutual conductor High-voltage limit-current fuse for protection
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !
 |

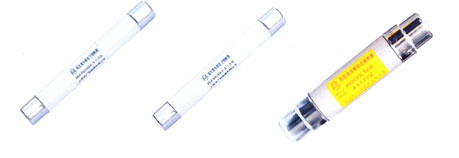

| Product Introduction :
|
|
This product can be used in indoor system of Ac50Hz and rated voltage of 3.6-40.5kV toprotect the voltage mutual-inductor from overloading and circ-uit brak.(Tested by National High-Voltage Quality Supervising and Testing Center,in accordance kof BG15166.2 and 1Ec282-1). |
|
|

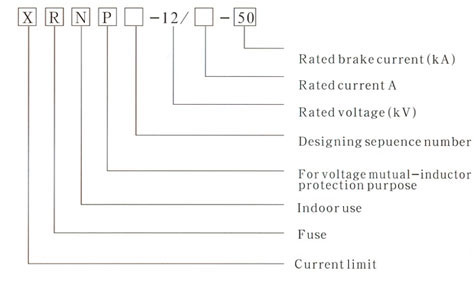

| Type :
|
 |
|
| Major technical parameters:
|
|

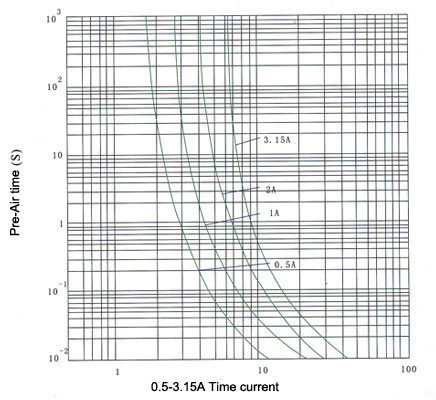

1.The fuse can break any problem current at rated break current 50kA or below. 2.Time-current property.Chart2 3.Current limit property,Chart3. |
|
| Technique data:
|
|

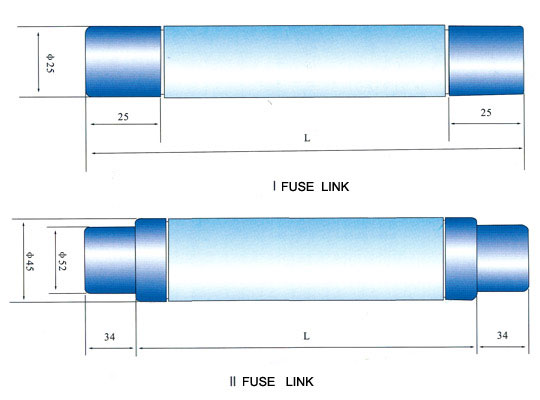

3.6/40.5KV(I) (d=￠=25mm)
| |||||||
|
Type |
Un(KV) | In(A) | L(mm) | U(KV) | |||
|
XRNP1 |
|
0.2 | 195 | 50 | |||
| 0.3 | |||||||
| 0.5 | |||||||
| 1 | |||||||
| 2 | |||||||
| 3.15 | |||||||
| 4 | |||||||
| XRNP1 | 24 | 0.2 | 354 | ||||
| 0.3 | |||||||
| 0.5 | |||||||
| 1 | |||||||
| 2 | |||||||
| 3.15 | |||||||
| XRNP1 | 40.5 | 0.2 | 465 | ||||
| 0.3 | |||||||
| 0.5 | |||||||
| 1 | |||||||
| 2 | |||||||
| 3.15 | |||||||
|
3.6/40.5KV(I) (d=￠=51mm)
| |||||||
|
Type |
Un(KV) | In(A) | L(mm) | U(KV) | |||
|
XRNP1 |
|
0.5 | 192 | 50 | |||
| 1 | |||||||
| 2 | |||||||
| 3.15 | |||||||
| 5 | |||||||
| 7.5 | |||||||
| 10 | |||||||
| XRNP1 | 24 | 0.5 | 367 | ||||
| 1 | |||||||
| 2 | |||||||
| 3.15 | |||||||
| 5 | |||||||
| 7.5 | |||||||
| XRNP1 | 40.5 | 0.5 | 442 | ||||
| 1 | |||||||
| 2 | |||||||
| 3.15 | |||||||
| 5 | |||||||

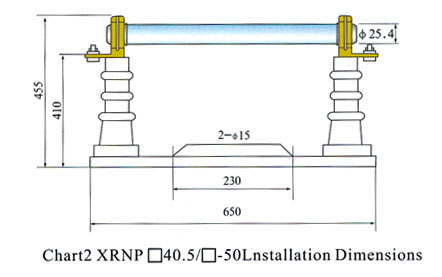

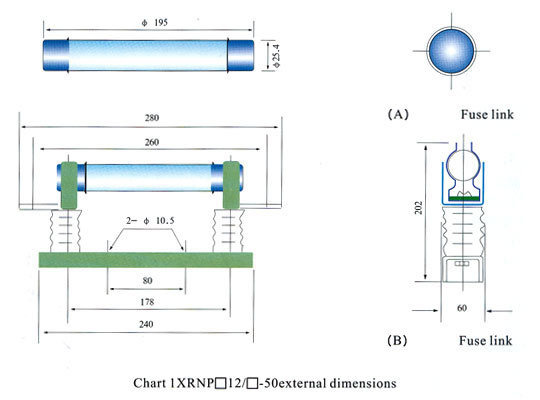

| Lnstallation Dimensios:
|
 |

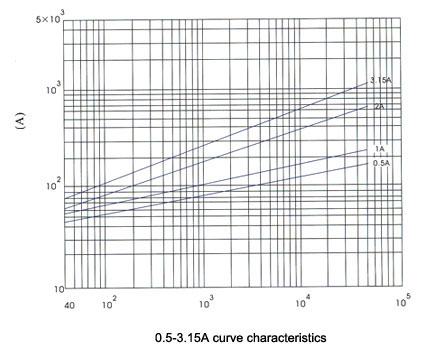

| curve characteristics:
|
 |
