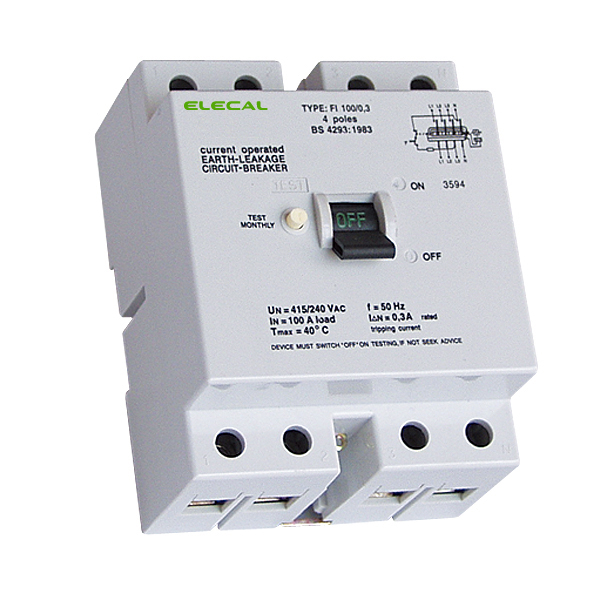

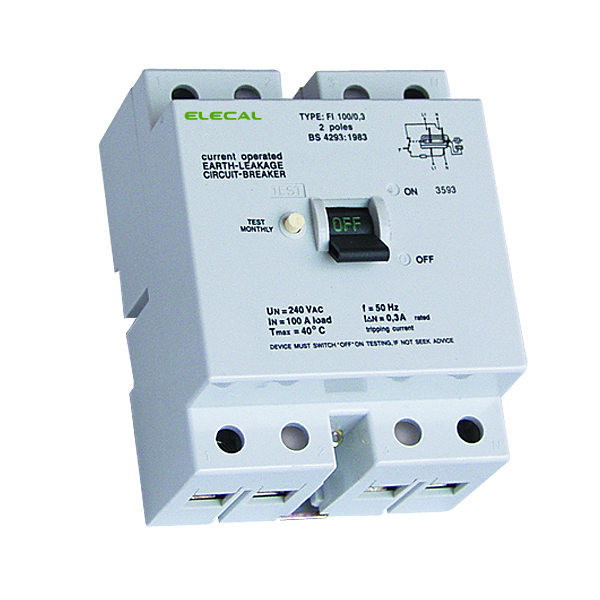

DZL9-100 Residual Current Circuit Breaker
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !1.Application
DZL9-100 RCCB is in conformity with the standard of IEC61008. The RCCB can cut off the faultcircuit immediately on the occasion of shock hazard or earth leakage of trunk. Thus, it is suitable toavoid the shock hazard and fire caused by earth leakage.The RCCB is mainly suitable for use in varieties of plants and enterprises, building construction 1phase 230V and 3 phase 400V 50/60Hz. RCCB is not suitable for use on DC pulse system.
2.Specification
| Type | DZL9-100 |
|---|---|
| Number of Poles | 2P, 4P |
| Rated Current (A) | 25, 32, 40, 63, 80, 100, 125 |
| Rated Residual Operating Current (In)(mA) | 100, 300, 500 |
| Rated Residual Non-operation Current (Ino)(mA) | ≤0.5In |
| Rated Voltage (V) | AC 230/400 |
| Residual Current Off-time | ≤0.1S |
| Short Circuit Capacity (Icu) | 3000A |
| Endurance(times) | ≥4000 |
| Protection Degree | IP20 |
