Electrical motor High-voltage limit-current fuse for protection

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

Product Introduction :

The product can be used in indoor Ac system of 50Hz and rated voltage 3.6kV and 7.2kV .When used together withe other protection facilitles (such as switches and vacuum contactors),it works to protect high-voltage engines and other electric facilities from overloading and circrit break.

Use and characteristics,Ordering must know click here

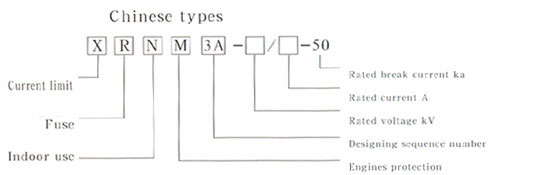

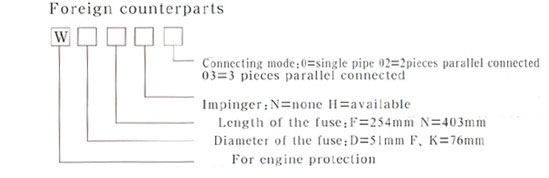

Type :

Basic parameters :

	Foreign Type	Rated voltage (KV)	Rated break current (A)	Rated current of the fuse limit (KA)	Rated current of the fuse limit (KA)	Major dimensions
						A	B	C	D
XRNM1-3.6	WDF.0	3.6	50	125	50,63,80,100,125	337(390)	254(312)	305(340)	50
	WFF.0	3.6		200	125,160,200				76
	WKF.0	3.6		400	250,315,355,400
XRNM1-7.2	WFF.0	7.2		160	25,31.5,40,50,63 80,100,125,160	486(500)	403(461)	454(150)	76
	WKN.0	7.2		315	200,224,250,315

Major technical characteristics

1.In required working conditions,the fuse can break any problem current between the minimum break current 1.6-3 and the rated break current.

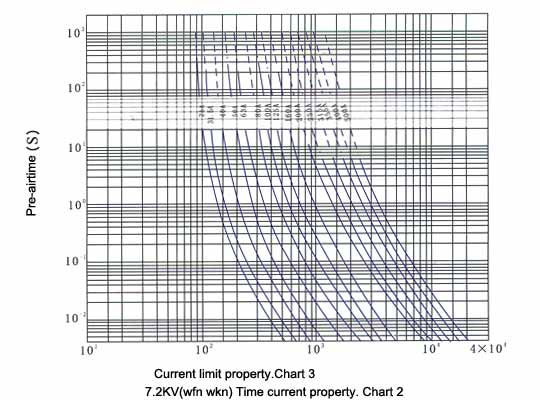

2.See chart 3 for time-current property.the section above the mimimum break current is broken line.

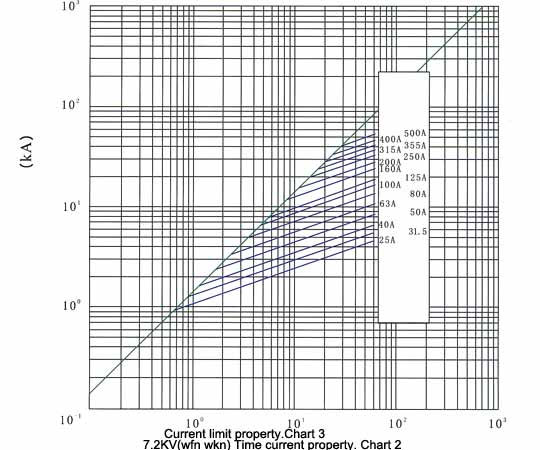

3.See chart 4 for current limit property.
4.See chart 5 for property.

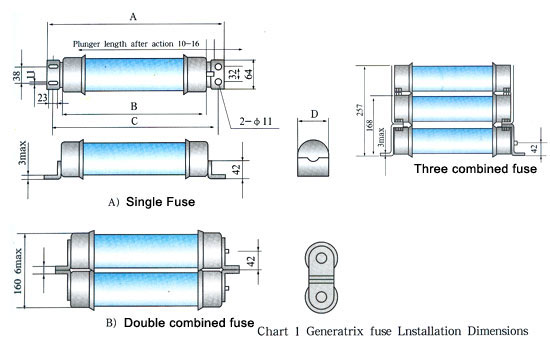

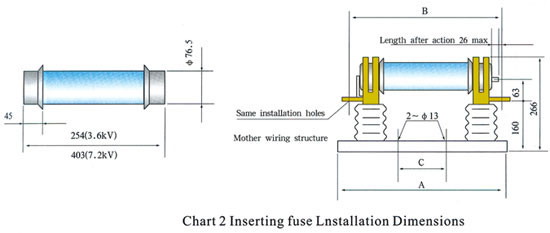

Lnstallation Dimensios:

Technique data

Technique data :


Type	Un(KV)	In(A)	L(mm)	A(KA)
XRNM1	3.6	25	￠52x192	63
		31.5
		40
		50
		63
		80
		100	￠76x192
		125
		160
		*200	￠88x192	50
		*250
		50	￠52x292	63
		63
		80
		100
		125
		160	￠76x292
		200
		250
		*315
		*355	￠88x292	50
		*400
		*500
XRNM1	7.2	25	￠52x192	63
		31.5
		40
		50
		63
		80	￠76x192
		100
		125
		*160	￠88x192	50
		*200
		25	￠52x292	63
		31.5
		40
		50
		63
		80
		100	￠76x292
		125
		160
		*200	￠88x292	50
		*250
		*315
		*355	￠88x442	50
		*400
		*500


Type	Un(KV)	In(A)	DxL(mm)	A(KA)
XRNM1	12	25	￠76x192	63
		31.5
		40
		50
		25	￠52x292	63
		31.5
		40
		50
		63	￠76x292
		80
		100
		125
		*160	￠88x292	50
		*200
		25	￠52x442	63
		31.5
		40
		50
		63
		80	￠76x442
		100
		125
		160
		*200	￠88x442	50
		*250
		100	￠76x537	63
		125
		160
		200
		*225	￠88x537	50
		*250
		*315


Type	Un(KV)	In(A)	DxL(mm)	A(mm)	A(mm)	(KA)	type
XRNM1	3.6	50	￠52x254	337	305	63	WDFHO
		63
		80
		100
		125
		160	￠76x292				WFFHO
		200
		224				50	WKFHO
		250
		315
		355
		400
XRNM1	7.2	2.5	￠76x403	486	454	63	WFNHO
		31.5
		40
		50
		63
		80
		100
		125
		160
		200				50	WKNHO
		224
		250
		315
XRNM1	12	25	￠76x568	650	619	63
		31.5
		40
		50
		63
		80
		100
		125
		160				50
		200
		224

Property Cure Diagram :
