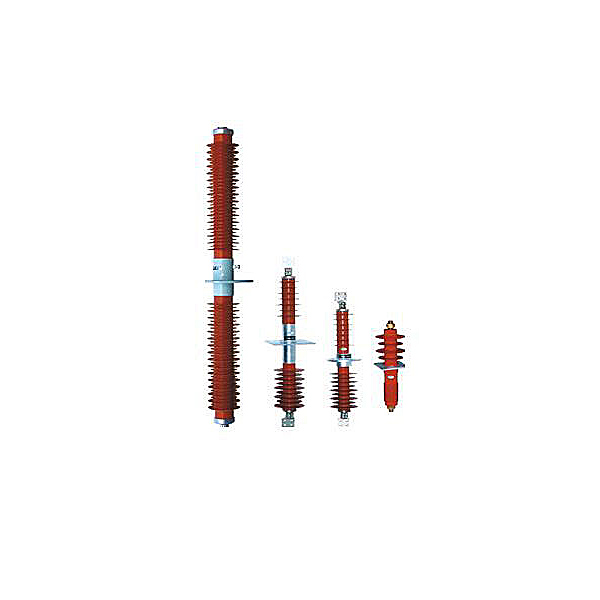

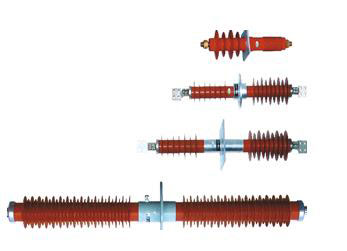

1.Composite Dry Wall Bushing
This product is a new model wall-through bushing,which used new model insulating material in the internal insulation,and used high external insulation,and have fine anti-pollution and explosionproof perfor-mance,it accords with the trend in development of non-oil and minaturization of the power department.it is satisfied with the requirement of the urban & rural electrical net rebuild of the new generation high voltage products.
2.Main Technical Parameters

Product Model	Rated Voltage	Rated Current(A)	Lightning impulse withstand voltage(peak)(KV)	P.F.wet withstand voltage(KV)	Bending break load(N)	Permitted bending load(N)
FGCW-10/200~630	10	200~630	75	30	120	625
FGCW-35/630~1600	35	630~1600	200	80	1250	625
FGCW-66/630~1600	66	630~1600	325	147	1250	625
FGCW-110/630~1600	110	630~1600	550	230	1250	625
