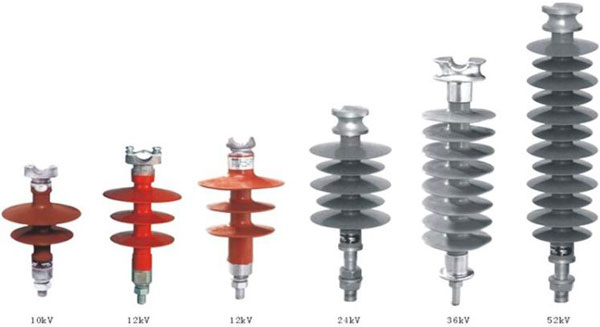

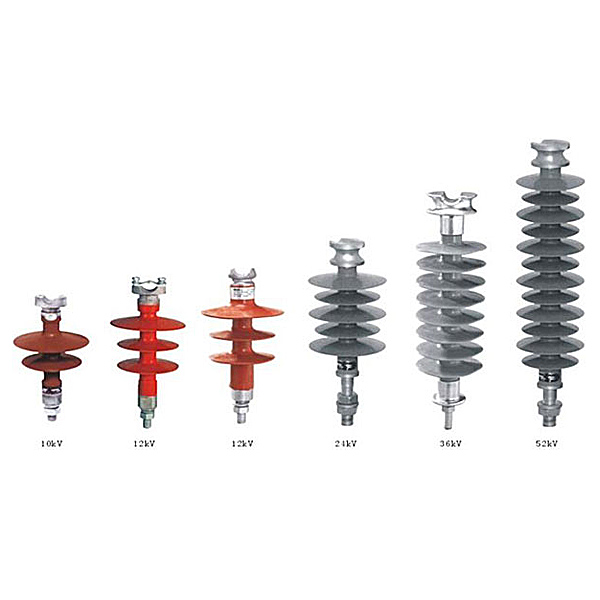

1.Composite Post Insulator
This product is applied to high voltage power line service.And Have features of good gydrophobicity,anti-ageing,anti-leakage trace and electric erode prood,tensile strength and bending strength,strong mechanical strength,shok resistance good quakeproof and brittle failure proof,light weight,easy to installation,and the installation iutline of top and base are the same size with porcelainpin type,they can exchange to use each other.

2.Main Technical Parameters

Product Model	Rated Voltage	Rated Mechanical Bending Load(KN)	Structure Height H.(mm)	Insulating distance Li.(mm)	Insulating distance Li.(mm)	Lightning impulse withstand voltage(peak)(KV)	P.F.wet wighstand voltage(virtualalue)(KV)
FPQ-10/4T20	10	4	215	125	280	75	42
FPQ4-10/5T20	10	5	250	165	370	105	42
FPQ-24/16	24	6	305	255	715	150	75
FPQ-36/18	36	8	440	360	1100	185	95
FPQ-52/12	52	12	480	415	1255	220	110
