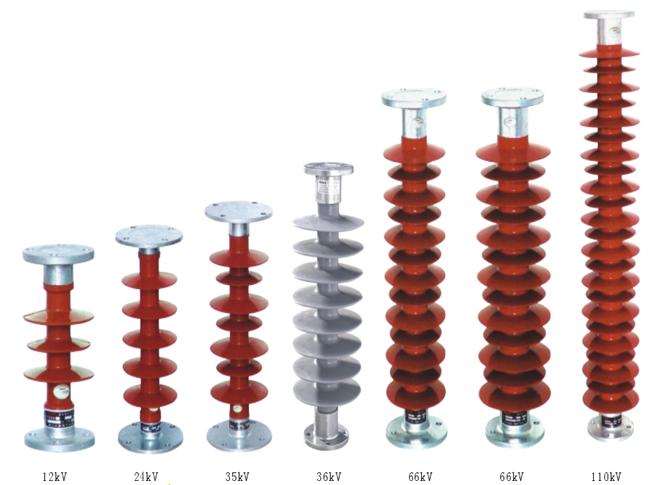

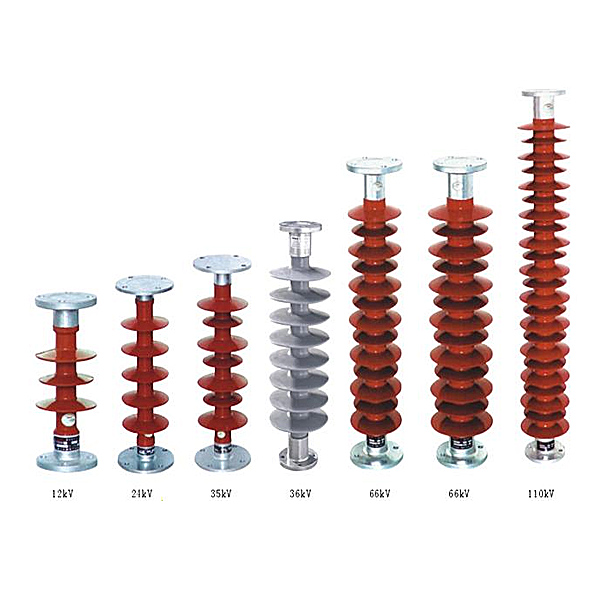

1.Composite Post Insulator
This product is applied to high voltage power line service.And Have features of good gydrophobicity,anti-ageing,anti-leakage trace and electric erode prood,tensile strength and bending strength,strong mechanical strength,shok resistance good quakeproof and brittle failure proof,light weight,easy to installation,and the installation iutline of top and base are the same size with porcelainpin type,they can exchange to use each other.

2.Main Technical Parameters

Product Model	Rated Voltage	Rated Mechanical Bending Load(KN)	Structure Height H.(mm)	Insulating distance Li.(mm)	Insulating distance Li.(mm)	Diameter of shed D.(mm)	Lightning impulse with stand voltage(peak)(KV)	P.F.wet wighstand voltage(virtualalue)(KV)
FZSW-10/4	10	4	215	125	290	100/90	75	42
FZSW-20/8	24	8	400	320	750	142	150	65
FZSW-35/6	35	6	450	360	946	148/118	185	95
FZSW-66/6	66	6	760	630	1886	160/130	410	185
FZSW-66/8	66	8	760	630	2010	220/190	410	185
FZSW-110/10	110	10	1220	1080	3530	220/190	500	230
FZSW-220/10	220	10	2440	2200	7060	220/190	1000	395
