AML8 RCD/RCCB

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

Technical data

Standard:IEC1008,GB16916, BS EN61008
Rated voltage)Un): 2pole:230VAC 4pole:400VAC
Rated current (In): 25,40,63A
Rated residual operating current (I△n):30,100,300,500mA
Rated residual non-operating current (I△no):0.5 I△n
Residual current off-time:≤ 0.1s
Minimum value of rated making and breaking capacity (1m): 1KA
Rated conditional short-circuit current (Inc): In=25,40A Inc=1500A In=63A Inc=3000A
Installation:On symmetrical DIN rail

Applicable standards:

International standard:
IEC 61008-1 residual current operated without integral overcurrent
Protection of household and similar uses (RCCB)

Normal usage and mounting conditions:

a) Ambient temperature: the breaker can work under ambient air temperature -25℃ ~+40℃;
b)Altitude: the breaker can work under altitude not exceed 2000m;
c)Class of pollution: the class of pollution is class 2;
d)Installation type: the installation type is Ⅲ;
e) Mounting position: the breaker can be mounted in rail,or horizontally, vertically. it will not decrease their electric features:
f)Environmental protection: Environmental factors are adequately considered in the design of circuit breaker,with many recoverable and degradable materials.
g)Power source in-line: the in-line can be connected from different directions, which will not affect its electric features.

Main teachnical data:

Model			AML8
Number of poles			2P 4P
Rated current in		A	10 16 25 32 40 63
Rated frequency		Hz	50
Rated operating voltage Ue		V	230 400
Rated isolating voltage Ui		V	500
rated short-circuit making capacity Im		A	630
Rated limit short-circuit current Ic		A	6000
Rated residual actuating current I△n		mA	30 100 300
Rated residual non- actuating current I△no		mA	15 50 150
Breaking time I△=I△N I△=5I△N		ms	≤100
Breaking time I△=I△N I△=5I△N		ms	≤40
Frequency of operation cycle	per hour	time	240
	electrical	time	1000
	non-electrical	time	2000
Level of protection			IP20
Working feature with DC weight			A,AC(type)
Mounting type			Rail plug-in
Connection type			Terminal with clip
Ambient temperature	Min/Max	℃	-25/+40
Altitude	Max	m	2000
Connection lead	Min/Max	mm²	1/25
Tightening torque		N.m	2
Extermal dimensions (LXWXH)	2P	mm	82.5X36X76
Extermal dimensions (LXWXH)	4P	mm	82.5X72X76
Weight	2P	kg	0.275
Weight	4P	kg	0.360

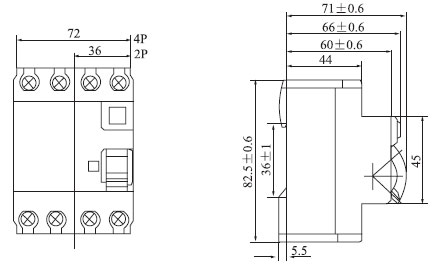

Outline installation dimensions:
Outline and installation dimensions, see table it is mounted by steal mounting quide rail, type TH35-7.5
