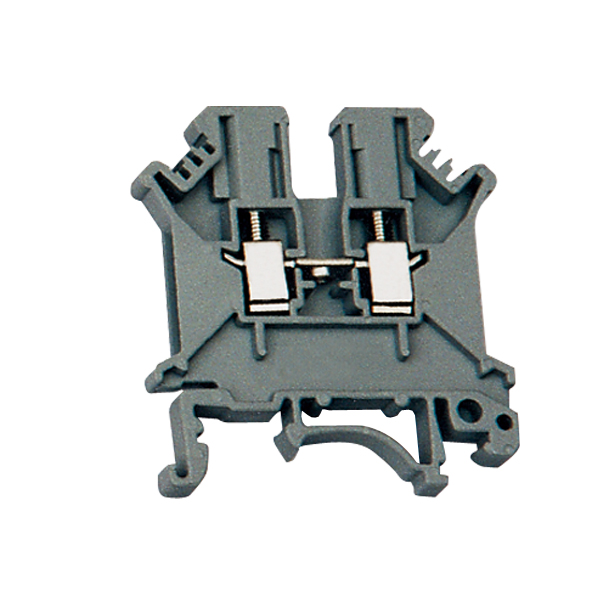

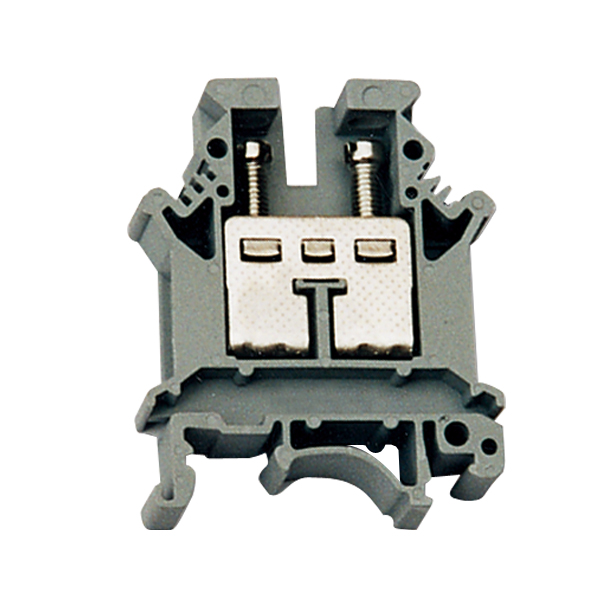

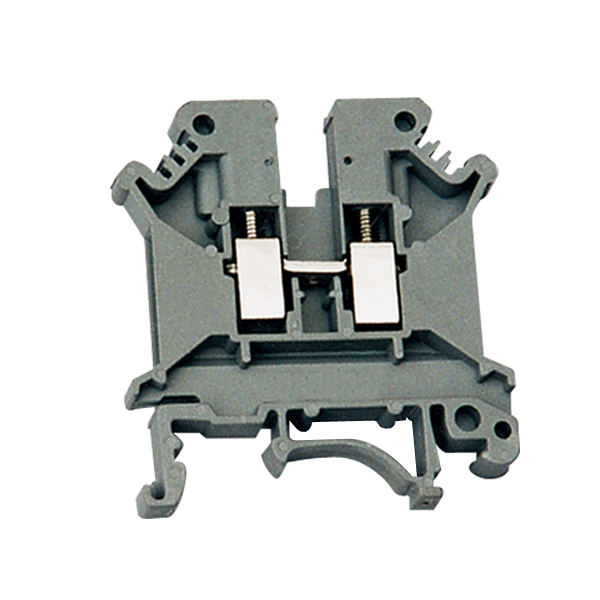

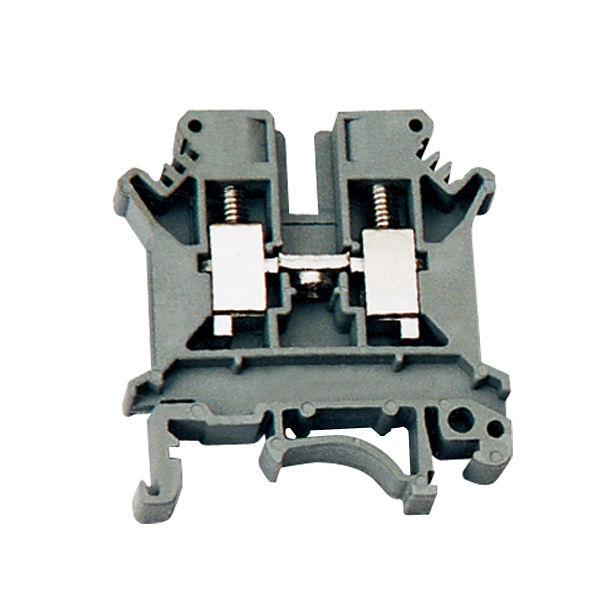

UK Terminal Block
 |
 |
 |
 |
 |
 |
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !1.Specifications
| Model | Hard Wire(mm2) | Soft Wire(mm2) | Rated Current(A) | Rated Voltage(V) | Dimension(mm) |
|---|---|---|---|---|---|
| UK2.5B | 0.2-4 | 0.2-2.5 | 32 | 690 | 6.2 x 42.5 x 42 |
| UK3N | 0.2-4 | 0.2-2.5 | 32 | 800 | 6.2 x 42.5 x 42 |
| UK5N | 0.2-6 | 0.2-4 | 41 | 800 | 6.2 x 42.5 x 47 |
| UK6N | 0.2-10 | 0.2-2.5 | 57 | 800 | 6.2 x 42.5 x 47 |
| UK10N | 0.5-16 | 0.5-10 | 76 | 800 | 10.2 x 42.5 x 47 |
| UK16N | 2.5-25 | 4-16 | 101 | 800 | 12.2 x 42.5 x 54 |
| UK35N | 0.75-50 | 0.75-35 | 150 | 1000 | 15.2 x 50.0 x 62 |
| UKH50 | 16-50 | 25-50 | 150 | 1000 | 20 x 70.5 x 83.5 |
| UKH95 | 25-95 | 35-95 | 232 | 1000 | 25 x 83 x 97.5 |
| UKH150 | 35-150 | 50-150 | 309 | 1000 | 31 x 100 x 118.5 |

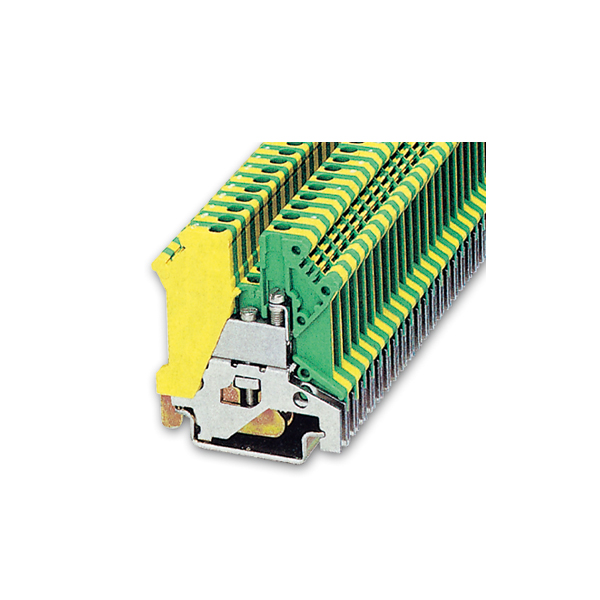

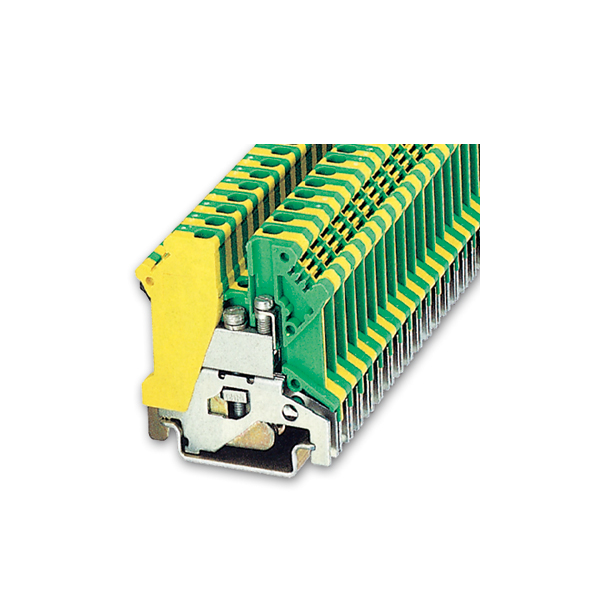

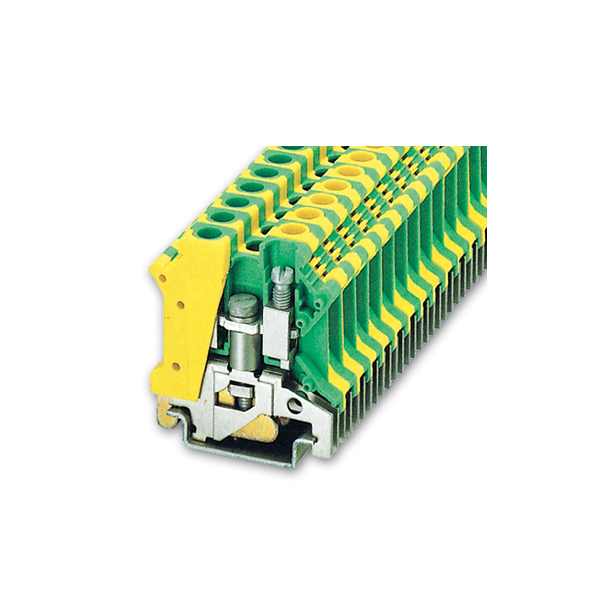

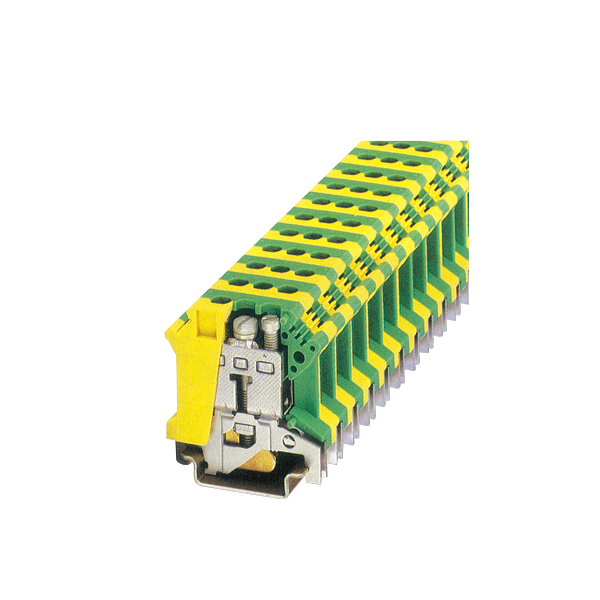

| Model | Hard Wire(mm2) | Soft Wire(mm2) | Rated Current(A) | Dimensions(mm) |
|---|---|---|---|---|
| USLKG2.5 | 0.2-4 | 0.2-2.5 | 32 | 6.2 x 42.5 x 42 |
| USLKG3 | 0.2-4 | 0.2-2.5 | 32 | 6.2 x 42.5 x 47 |
| USLKG5 | 0.2-6 | 0.2-4 | 41 | 6.2 x 42.5 x 47 |
| USLKG6N | 0.2-10 | 0.2-6 | 57 | 8.2 x 42.5 x 47 |
| USLKG10N | 0.5-16 | 0.5-10 | 76 | 10.2 x 42.5 x 47 |
| USLKG16N | 2.525 | 4-16 | 101 | 12.2 x 42.5 x 54 |
| USLKG35N | 0.75-50 | 0.75-35 | 150 | 15.2 x 50.0 x 62 |
| USLKG50 | 16-50 | 25-50 | 150 | 20 x 70.5 x 81.5 |
