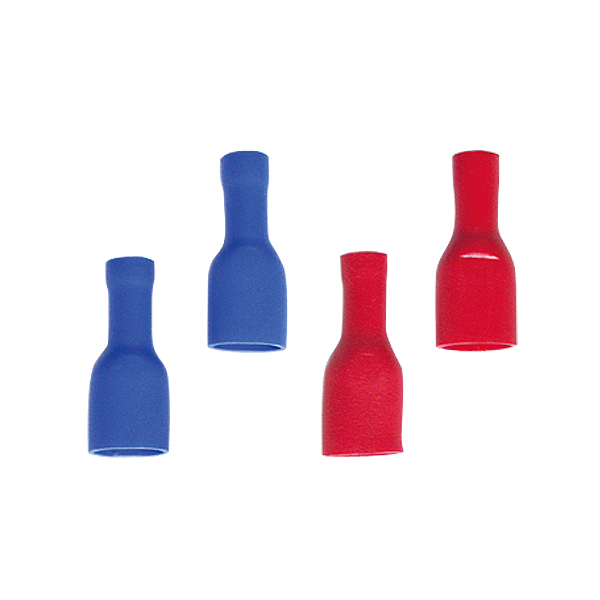

Fully Vinyl Insulated Disconnector
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !1.Specifications
Lead section:0.5~1.5mm2(22~16) Max current:=10A
Lead section:1.5~2.5mm2(16~14) Max current:=15A
Lead section:4~6mm2(12~10) Max current:=24A
Lead section:0.5~1.5mm2(22~16) Max current:=10A
| ITEM.NO. | Meme Tab (mm) | Dimension (mm) | |||||
|---|---|---|---|---|---|---|---|
| W | B | D | d | L | |||
| FDFD1.25-187(5) | 0.5 x 4.75 | 5.6 | 3.28 | 4.0 | 1.7 | 20.0 | |
| FDFD1.25-187(8) | 0.8 x 4.75 | 5.6 | 3.28 | 4.0 | 1.7 | 20.0 | |
| FDFD1.25-250 | 0.8 x 6.35 | 7.4 | 3.28 | 4.0 | 1.7 | 21.5 | |
Lead section:1.5~2.5mm2(16~14) Max current:=15A
| ITEM.NO. | Meme Tab (mm) | Dimension (mm) | ||||
|---|---|---|---|---|---|---|
| W | B | D | d | L | ||
| FDFD2-187(5) | 0.5 x 4.75 | 5.6 | 5.0 | 4.5 | 2.3 | 20.0 |
| FDFD2-187(8) | 0.8 x 4.75 | 5.6 | 5.0 | 4.5 | 2.3 | 20.0 |
| FDFD2-250 | 0.8 x 6.35 | 7.4 | 5.0 | 4.5 | 2.3 | 21.5 |
Lead section:4~6mm2(12~10) Max current:=24A
| ITEM.NO. | Meme Tab (mm) | Dimension (mm) | ||||
|---|---|---|---|---|---|---|
| W | B | D | d | L | ||
| FDFD5.5-250 | 0.8 x 6.35 | 7.4 | 6.6 | 5.7 | 3.4 | 25.5 |
