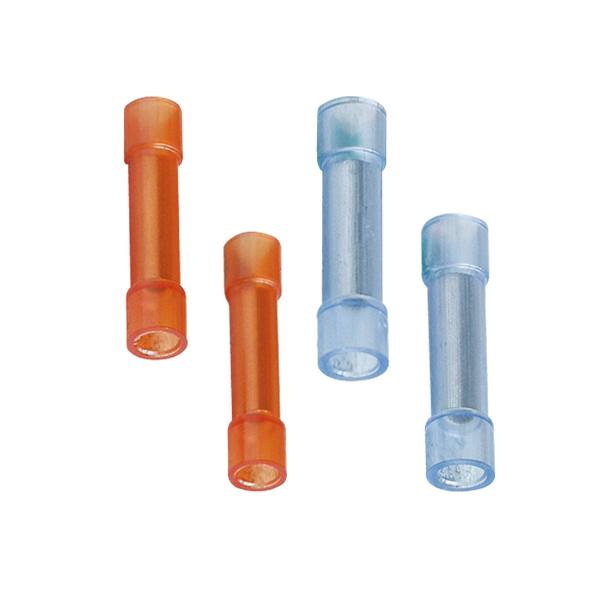

Long Full Insulated Middle Terminal

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

Max. Current: 26-22A.W.G: 9A 22-16A.W.G: 19A 16-14A.W.G: 27A 12-10A.W.G: 48A
Max. Endure Voltage: 105°C Ui=600V
Insulated Material: Nylon

1.Specifications

Item.No.	Dimension(mm)			A.W.G mm²	Color
Item.No.	L	D	C	A.W.G mm²	Color
BNY-1.25	27.3	3.2	1.7	22-16 A.W.G 0.5-1.5mm²	Red
BNY-2	27.3	3.8	2.3	16-14 A.W.G 1.5-2.5mm²	Blue
BNY-5.5	27.3	5.3	3.4	12-10 A.W.G 4-6mm²	Yellow
