PE(white, grey), elasticity and shock resisting.
Inserting type, nail attached in clips.
Save time and cost.

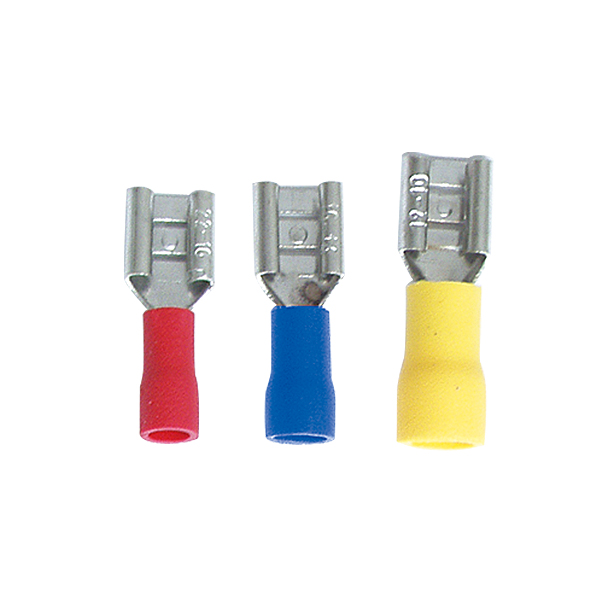

1.Specifications
Lead section:0.5~1.5mm²(22~16) Max current:=10A

ITEM.NO.	Meme Tab (mm)	Thickness (mm)	Dimension (mm)
			B	d	D	L	H
FDD1.25-110(5)	0.5 x 2.8	0.3	3.8	1.70	3.80	19.0	19.0
FDD1.25-110(8)	0.8 x 2.8	0.3	3.8	1.70	3.80	19.0	19.0
FDD1.25-187(5)	0.5 x 4.75	0.35	5.6	1.70	3.80	19.0	19.0
FDD1.25-187(8)	0.8 x 4.75	0.35	5.6	1.70	3.80	19.0	19.0
FDD1.25-250	0.8 x 6.35	0.4	7.4	1.70	3.80	21.0	21.0

Lead section: 1.5~2.5mm²(16~14) Max current:=15A

ITEM.NO.	Meme Tab (mm)	Thickness (mm)	Dimension (mm)
			B	d	D	L	H
FDD2-110(5)	0.5 x 0.8	0.3	3.8	2.3	4.3	19.0	10
FDD2-110(8)	0.8 x 2.8	0.3	3.8	2.3	4.3	19.0	10
FDD2-187(5)	0.5 x 4.75	0.35	5.6	2.3	4.3	19.0	10
FDD2-187(8)	0.8 x 4.75	0.35	5.6	2.3	4.3	19.0	10
FDD2-250	0.8 x 6.35	0.4	7.4	2.3	4.3	21.0	10
FDD2-312	0.8 x 0.8	0.4	9.0	2.3	4.3	23.0	10

Lead section: 1.5~2.5mm²(16~14) Max current:=15A

ITEM.NO.	Meme Tab (mm)	Thickness (mm)	Dimension (mm)
			B	d	D	L	H
FDD5.5-250	0.5 x 3.65	0.4	7.4	3.4	5.7	25.0	14.0
FDD5.5-375	1.2 x 9.4	0.5	10.9	3.4	5.7	25.0	14.0
