1.Application

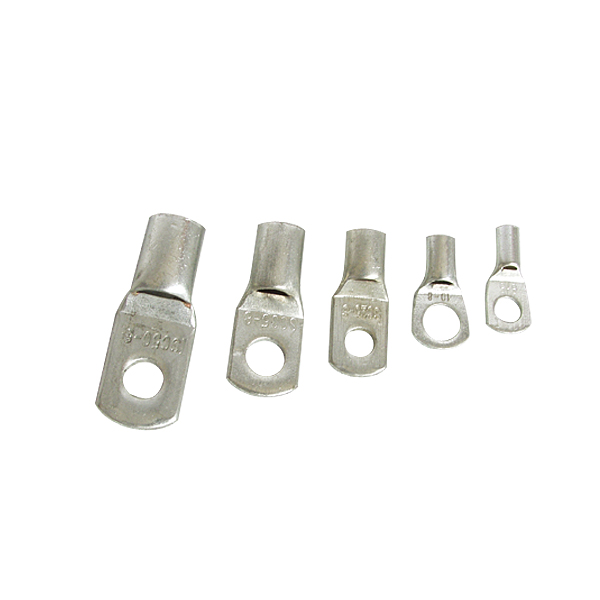

SC copper cable lugs are suitable for the connection of copper conductors (section 1.51000mm²) in power cable with electronic equipment. They are made of 99.9% pure tin coated copper tube T2. Working temperature is from -55C to +150C.

2.Specification

Type		D	d	L
SC-1.5	f4, f5	3.5	1.8	18
SC-2.5	f4, f5, f6	4	2.5	19
SC-4	f5, f6	4.8	3.1	21
SC-6	f5, f6, f8	5.5	3.8	24
SC-10	f6, f8	6.8	4.8	25.5
SC-16	f6, f8, f10	7.5	5.5	30.5
SC-25	f6, f8, f10, f12	9	7	34
SC-35	f8, f10, f12	10.5	8.2	38
SC-50	f8, f10, f12	12.5	9.8	45
SC-70	f8, f10, f12	14.5	11.5	50
SC-95	f10, f12	17.5	13.8	55.5
SC-120	f12, f16	19.5	15.5	63
SC-150	f12, f16	20.5	16.5	70
SC-185	f16	23.5	18.8	78
SC-240	f16	26	21	92
SC-300	f16, f20	30	24	102
SC-400	f16, f20	34	27	113
SC-500	f16, f20	38	30	123
SC-630	f20	45	35	135
SC-800	f22	50	40	170
SC-1000	f22	56	44	200
