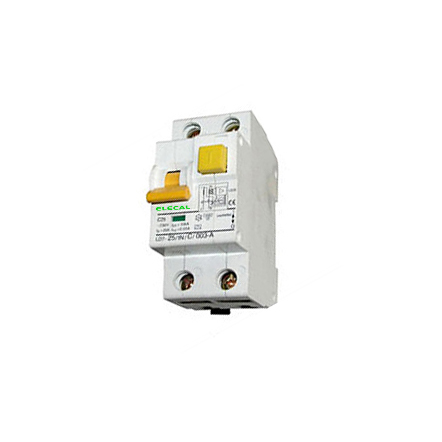

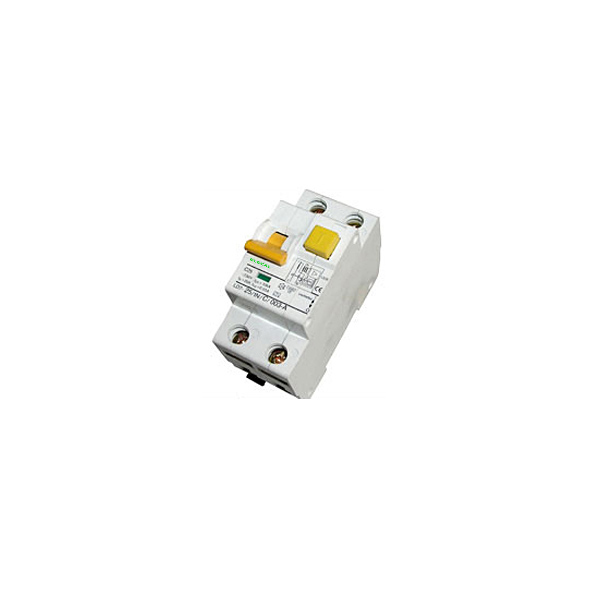

FL7(ADL7)-40 Series RCBO

Return

Bookmark This Page

Print This Page

Contact Online

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

E-Mail : sales@elecal.com

Catalogue Download (PDF Files)

Add to Inquiry Basket　　

View Inquiry Basket

Main features

Combined electronic type RCD/MCD device
High breaking capacity:10KA
Line voltage-independent tripping
Compatible with standard busbar
Twin-purpose terminal(lift/open-mouthed)above and below
Switch position indicator red-green
Switching toggle(MCB component)in colour designationg the rated current
Busbar positioning optionally above or below
Comprehensive range of accessories suitable for subsequent installation

Electrical technical data

Standards		IEC / EN 61009
Tripping time		Instantaneous
		Type G 10 ms delay
Rated voltage		230V 50Hz
Operational voltage range		196-253V
Rated tripping current		30, 100, 300mA
Rated non-tripping current		0.5In
Sensitivity		Type A and type AC
Selectivity class		3
Rated breaking capacity		10kA
Rated current		6-40A
Characteristic		B,C
Maximum back-up fuse(short circuit)		100A gl(>10kA)
Endurance	electrical life	>4000 operating cycles
	mechnical life	>20000 operating cycles
