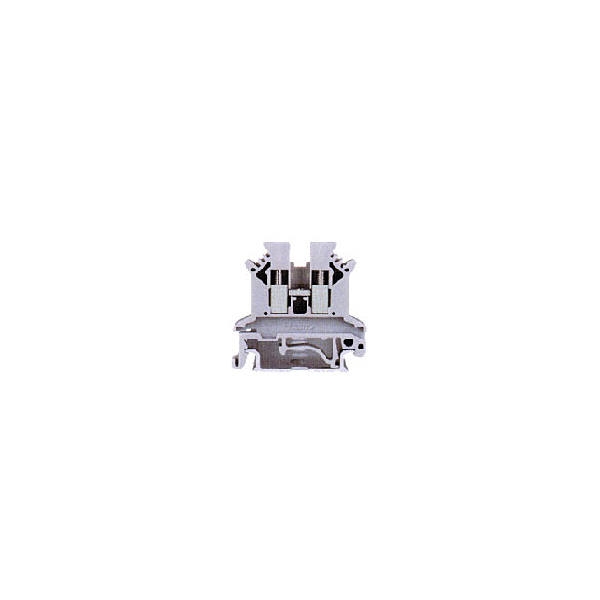

UK series universal terminal blocks
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !
 |
 |
 |
 M3 "...6"  8mm |
 M3 "...5"  8mm | |
|
UK2.5B |
UK3N | |
|
solid wire (mm2)0.2-4 |
solid wire (mm2)0.2-4 | |
|
stranded wire (mm2)0.2-2.5 |
stranded wire (mm2)0.2-2.5 | |
| instruction: |
IEC60947-7-1 |
IEC60947-7-1 |
end cover thickness:1.5mm2 grey |
current:32A voltage:800V |
current:32A voltage:800V |
|
D-UK2.5 |
D-UK4/10 | |
|
10 center connection-strips, can be divided into 2 position or 3 position |
FB1 10-6 |
FB1 10-5 |
|
Isolator bridge bar:10-position,divisible need cushion block |
lSSB1 10-6 lS-K4 |
|
|
Swith bar for 2 terminal blocks complete ,add end cover between two terminals.  |
USBR 2-7 |
|
|
separating plate:be used for electrical separation of neighbouring bridges  |
TS-K |
TS-K |
|
partition plate:1.5mm thick  |
ATP-UK |
ATP-UK |
|
universal end fixed end fixed piece  |
E/UK |
E/UK |
 |
 |
 |
|
M4"...10" 11mm |
M6"...10" 16mm | |
|
UlK 16 |
UlK 35 | |
|
solid wire (mm2)2.5-25 |
solid wire (mm2)10-35 | |
|
stranded wire (mm2)4-16 |
stranded wire (mm2)10-35 | |
|
IEC60947-7-1 |
IEC60947-7-1 | |
|
instruction: |
current:101A voltage:800V |
current:125A voltage:800V |
|
end cover thickness:1.5mm2 grey |
D-UlK 16 |
|
|
Fixed bridge-fittng:for cooss connections in the terminal center screw nail with insulating ring ,10 position, divisible, with 10 nails |
FB1 10-12 |
FB1 2-15 FB1 3-15 |
|
separating plate:for electrical separation between connection fittings |
TS-K |
TS-K |
|
partition plate:1.5mm thick |
ATP-UK |
block shell, no end cover |
|
universal end fixed piece |
E/UK |
E/UK |
 |
 |
 |
| M3"...6" 8mm |
M4"...8" 10mm |
M4"...10" 12mm |
|
UK5N |
UK6N |
UK10N |
|
solid wire (mm2)0.2-6 |
solid wire (mm2)0.2-10 |
solid wire (mm2)0.5-16 |
|
stranded wire (mm2)0.2-4 |
stranded wire (mm2)0.2-6 |
stranded wire (mm2)0.5-10 |
|
IEC60947-7-1 |
IEC60947-7-1 |
IEC60947-7-1 |
|
current:41A voltage:800V |
current:57A voltage:800V |
current:76A voltage:800V |
|
D-UK4/10 |
D-UK4/10 |
D-UK4/10 |
|
FB1 10-6 |
FB1 10-8 |
FB1 10-10 |
|
lSSB1 10-6 lS-K4 |
lSSB1 10-8 lS-K10 |
lSSB1 10-10 lS-K10 |
|
USBR 2-7 |
UR 2-8/13N |
|
|
TS-K |
TS-K |
TS-K |
|
ATP-UK |
ATP-UK |
ATP-UK |
|
E/UK |
E/UK |
E/UK |
 |
 |
 |
| M6"...14" 24mm |
M8"...22" 33mm |
M10"...22" 40mm |
|
UKH 50 |
UKH 95 |
UKH 150 |
|
solid wire (mm2)16-50 |
solid wire (mm2)25-95 |
solid wire (mm2)35-150 |
|
stranded wire (mm2)25-50 |
stranded wire (mm2)35-95 |
stranded wire (mm2)50-150 |
|
IEC60947-7-1 |
IEC60947-7-1 |
IEC60947-7-1 |
|
current:150A voltage:1000V |
current:232A voltage:1000V |
current:309A voltage:1000V |
|
FB1 2-20 FB1 3-20) |
||
|
insertion short connection fitting, fully insulated, plug terminal clip and insert on the shell of terminal |
EB2-25 EB3-25 |
EB1 2-31 EB1 3-31 |
|
end fixed piece E/AL-NS 35 |
||
|
end fixed piece:for end-fixing UKH50,95 and 150 type terminals. |
E/AL-NS 35 |
E/AL-NS 35 |
 |
 |
 |
|
universal test terminal |
knife double-connecting wire terminal |
knife breaking terminal |
|
M4"...8" 10mm |
M3"...6" 8mm |
M3"...5" 7mm |
|
URTK/S |
UDK4-P/P |
MTK-P/P |
|
solid wire (mm2)0.5-10 |
solid wire (mm2)0.2-4 |
solid wire (mm2)0.2-4 |
|
stranded wire (mm2)0.5-6 |
stranded wire (mm2)0.2-2.5 |
stranded wire (mm2)0.2-2.5 |
|
IEC60947-7-1 |
IEC60947-7-1 |
IEC60947-7-1 |
|
current:57A voltage:500V |
current:16A voltage:690V |
current:16A voltage:400V |
|
instruction:knife test terminal ,test socket nails on two sides |
instruction:knife terminal, test socket nails on two sides of knife |
instruction:knife breaking terminal ,test socket nails on two sides |
|
End cover:D-URTK/S |
End cover:D-UKD4 |
End cover:D-MTK |
|
Center short connection piece: FB10-RTK/S |
||
|
Partition plate : ATS-RTK |
Insertion short connection piece : EB 2-62 EB 3-62 EB 10-62 |
Insertion short connection piece : EBL 2-5' EBL 3-5' EBL 10-5' |
|
Inward shift short connection piece: USB2-RTK/S |
||
|
Outward shift short connection piece:ASB2-RTK/S |
Partition plate:ATS-MTK | |
 |
 |
 |
|
double level terminal |
double level terminal |
double connecting-wire terminal |
|
M3"...6" 8mm |
M3"...6" 8mm |
M3"...5" 7mm |
|
UKK 5 |
UKKB 3 |
UDK 4 |
|
solid wire (mm2)0.2-4 |
solid wire (mm2)0.25-2.5 |
solid wire (mm2)0.2-4 |
|
stranded wire (mm2)0.2-4 |
stranded wire (mm2)0.25-1.5 |
stranded wire (mm2)0.2-2.5 |
|
IEC60947-7-1 |
IEC60947-7-1 |
IEC60947-7-1 |
|
current:32A voltage:500V |
current:32A voltage:500V |
current:32A voltage:690V |
|
End cover:D-UKK3/5 |
End cover:D-UKKB3/5 |
End cover:D-UDK4 |
|
Spacer cover:DG-UKK3/5 |
Spacer cover:DG-UKKB3/5 |
Center short connection piece:FB1 10-6 |
|
Spacer plate:Dp-UKK3/5 |
Spacer plate:DP-UKKB3/5 |
isolator short connection piece : ISSBI 10-6 |
|
Center short connection piece: FB1 10-6 |
Fixed bridge : FBRNl 2-5N FBRNl 3-5N |
Short connection piece isolator :IS-K4 |
|
Inward shift short connection piece:USB2-RTK/S |
FBRNl 4-5N FBRNl 10-5N |
Switchable short connection piece between two terminals: USBR 2-7 |
|
Outward shift short connection piece:ASB2-RTK/S |
Partition plate:TS-KK 3 | |
|
| ||
|
|
 |
 |
|
double outlet connecting-wire terminal |
universal terminal |
sign type terminal |
|
M3"...6" 8mm |
M3"...6" 8mm |
|
|
UK5-TWlN |
UK5-RETURN |
UBE/D |
|
solid wire (mm2)0.2-4 |
solid wire (mm2)0.2-6 |
|
|
stranded wire (mm2)0.2-4 |
stranded wire (mm2)0.2-4 |
|
|
IEC60947-7-1 |
IEC60947-7-1 |
|
|
current:32A voltage:500V |
current:41A voltage:500V |
|
|
instructiion:terminals with universal locking foot ,for mounting on  or |
instruction:terminals'universal foot, for mounting on or |
Instruction:mark the terminal group,for mounting on or |
|
End cover: D-UK5-TWlN |
End cover:D-UK3-RETURN |
|
|
Center short connection piece: FB1 10-6 |
Center short connection piece: FB1 10-6 |
|
|
Short connection piece isolator: lSSBl 10-6 lS-K4 |
Insertion short connection piece: EB 2-62 EB 3-62 EB 10-62 |
|
|
Switchable short connection piece between two terminals: USBR 2-7 |
Partition plate: TS-UK3-RETURN |
|
|
Partition plate :TS-K |
Partition plate: ATP-UK3-RETURN |
|
|
| ||
 |
 |
 |
|
miniature terminal |
miniature terminal |
miniatrue double-level terminal |
|
M3"...5" 8mm |
M3"...6" 8mm |
M3"...5" 7mm |
|
MBK 3/E-Z |
MBK 5/E-Z |
MBKKB 2.5 |
|
solid wire (mm2)0.2-2.5 |
solid wire (mm2)0.2-6 |
solid wire (mm2)0.2-4 |
|
stranded wire (mm2)0.2-4 |
stranded wire (mm2)0.2-4 |
stranded wire (mm2)0.2-2.5 |
|
IEC60947-7-1 |
IEC60947-7-1 |
IEC60947-7-1 |
|
current:32A voltage:500V |
current:41A voltage:500V |
current:24A voltage:690V |
|
Instruction :according to the rules of EN50045, for mounting on the guide of NS 15 |
Instruction :terminal'suniversal foot, for mounting on or |
Instruction :mark to terminal group, for mounting on or |
|
End cover:D-LTU2MBK 3/5 |
End cover:D-MBK 5 |
End cover:BKKB-2.5 |
|
Center short connection piece: FBR110-5N |
Center short connection piece: FB1 10-6 |
Center short connection piece: FBRNl 10-5N |
|
Islator short connection piece: lSSBl 10-6 lS-K4) |
Insertion short connection piece : EB 2-5/ 3-5/ 10-5 | |
|
end fixed piece: E/MBK1 |
end fixed piece: E/MBK1 |
end fixed piece: E/MBK1 |
|
Partition plate :ATP-MBK |
Partition plate :ATP-MBK |
Partition plate :TS-KK3 |
