PE(white, grey), elasticity and shock resisting.
Inserting type, nail attached in clips.
Save time and cost.

1.Specifications

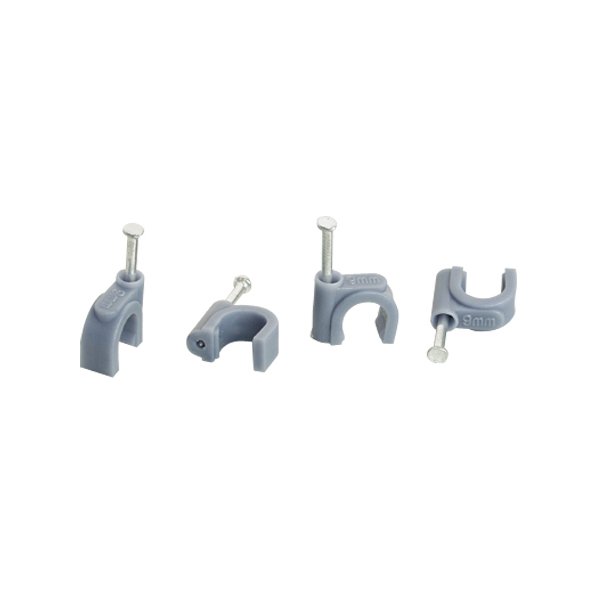

Round nail clips

Item.No.	H (mm)	D (mm)	Nail
R-3.5MM	4.5	3.5	1.7 x 14
R-4MM	5.3	4.0	1.7 x 14
R-5MM	6.3	5.0	1.7 x 14
R-6MM	7.4	6.0	1.85 x 16
R-7MM	8.4	7.0	1.85 x 18
R-8MM	9.4	8.0	1.95 x 19
R-9MM	10.4	9.0	2.05 x 22
R-10MM	11.4	10.0	2.20 x 23
R-12MM	13.4	12.0	2.35 x 25
R-14MM	16.4	14.0	2.35 x 30
R-16MM	17.7	16.0	2.35 x 32
R-18MM	19.7	18.0	2.6 x 38
R-20MM	22.2	20.0	2.7 x 40
R-22MM	25.0	22.0	2.9 x 43
R-25MM	27.7	25.0	3.2 x 50
R-30MM	33.1	30.0	3.5 x 55
R-32MM	35.6	32.0	3.5 x 55
R-35MM	36.6	35.0	3.5 x 60
R-40MM	45.2	40.0	3.5 x 65

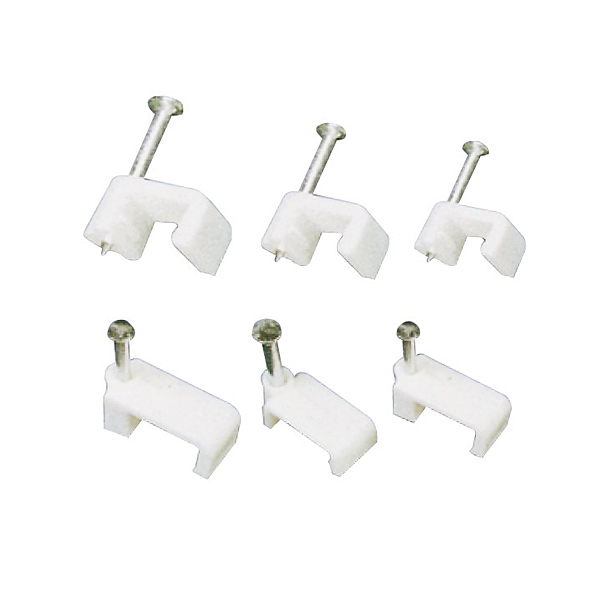

Flat nail clips

Item.No.	H (mm)	A (mm)	B (mm)	Nail
F-4MM	6.0	3.8	4	1.7 x 14
F-5MM	6.0	3.8	5	1.7 x 14
F-6MM	6.5	4.1	6	1.7 x 16
F-7MM	7.0	4.7	7	1.9 x 16
F-8MM	7.5	5.0	8	2.1 x 19
F-9MM	8.2	5.4	9	2.1 x 20
F-10MM	8.6	5.7	10	2.3 x 21
F-12MM	9.0	6.1	12	2.3 x 23
F-14MM	11.0	8.0	14	2.3 x 25

Coaxial cable nail clips

Item.No.	W (mm)	Nail
C-0305	3-5	1.2 x 20.0
C-0406	4-6	1.4 x 20.5
C-0508	5-8	2.0 x 25.5
C-0607	6-7	2.0 x 20.0
C-0610	6-10	2.0 x 25.5
C-0812	8-12	2.0 x 30.0
C-1014	10-14	2.0 x 30.5
