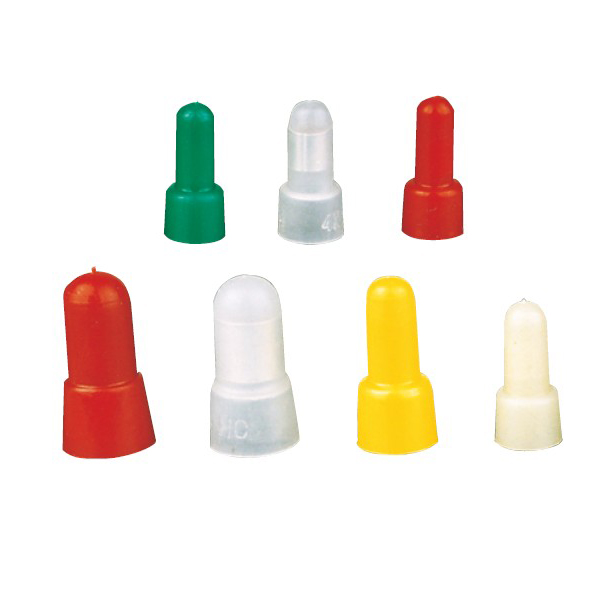

1.Specifications
Material: Nylon 66, 94V-2 with UL approval.
Usage: Peel the coat of wire, then insert to tube, use pincers to fix them.
Feature: Nylon shell, long copper tube, easy to conduct electricity and hold wire tightly.

ITEM.NO.	A(mm)	W		D(mm)	Suitable Wires
		B(mm)	C(mm)		mm2	AWG
P6-3	17.8	7.2	3.6	2.5	1.25	22-16
P6-4	21.0	8.2	4.0	2.9	2	16-14
P6-5	22.5	9.0	4.8	3.9	5.5	12-10
P6-6	25.0	10.0	5.6	4.5	8	8
P6-7	24.2	11.0	6.5	5.4	10	8-6
P6-8	25.6	11.8	7.5	6.0	13	6
P6-10	29.5	13.5	9.3	7.5	16	4
