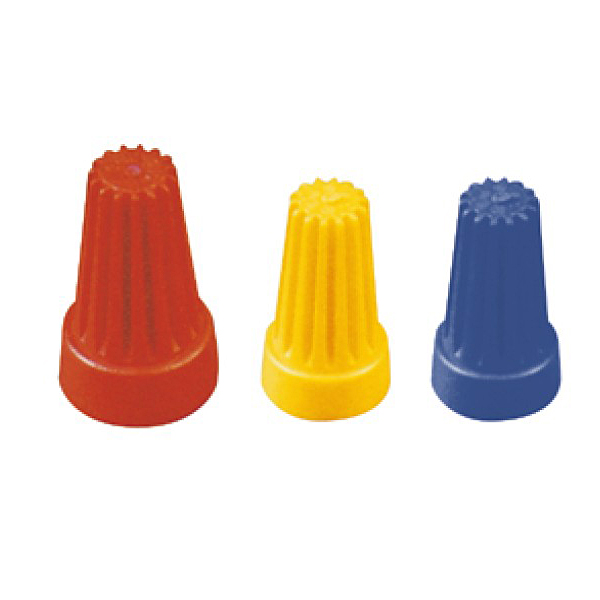

P7 Self-screw Shell End Wire Connector
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !1.Specifications
Material: Nylon 66, with spring inside.
Usage: peel wire coat, insert the wire in, then tighten.
Material: Nylon 66, with spring inside.
Usage: peel wire coat, insert the wire in, then tighten.
| Item.No. | H (mm) | W (mm) | D (mm) | Suitable Wire (mm) |
|---|---|---|---|---|
| P7-1 | 15 | 8.7 | 6.5 | MIN#20 x 1+#22 x 1, MAX#16 x 2 |
| P7-2 | 18 | 10.0 | 7.5 | MIN#20 x 3, MAX#16 x 3 |
| P7-3 | 23 | 11.2 | 9.5 | MIN#20 x 3, MAX#16 x 3+#18 x 1 |
| P7-4 | 24.2 | 13.6 | 10.8 | MIN#14 x 1+#18 x 1, MAX#14 x 4+#18 x 1 |
| P7-5 | 27.8 | 16.1 | 12.7 | MIN#14 x 2, MAX#10 x 2+#12 x 2 |
