AC-Axial Fan
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !1.Specifications
| Type | Air flow(m3/h) | Nominal voltage (V) | Frequency (Hz) | Power input (Watt) | Sintec~ball bearings | Sleeve bearings | Dimension(mm) |
|---|---|---|---|---|---|---|---|

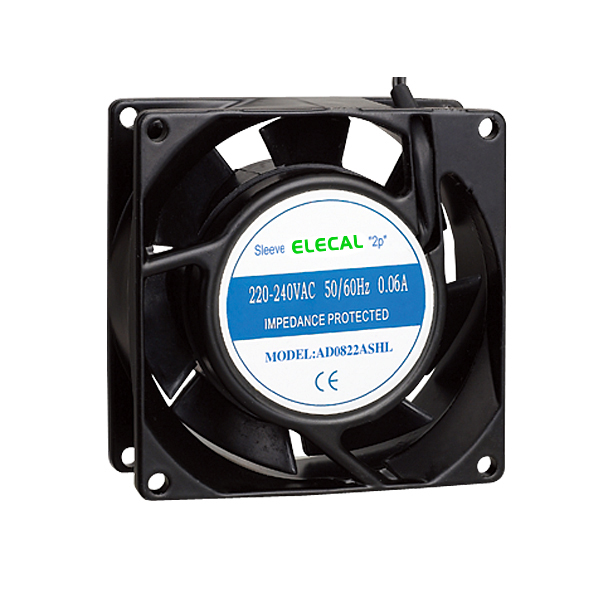

| AD0822ASN | 29 | 230 | 50 | 10 | 80 x 80 x 25 | ||
| AD0822ABN | 29 | 230 | 50 | 10 | |||
| AD0822ASH | 35 | 230 | 50 | 11.5 | |||
| AD0822ABH | 35 | 230 | 50 | 11.5 | |||
| AD0821ASN | 30 | 115 | 60 | 11 | |||
| AD0821ABN | 30 | 115 | 60 | 11 | |||
| AD0821ASH | 36 | 115 | 60 | 12 | |||
| AD0821ABH | 36 | 115 | 60 | 12 | |||

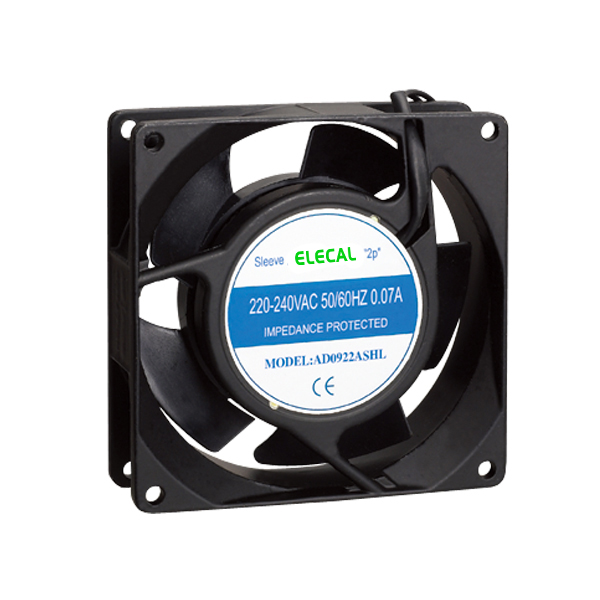

| AD0922ASN | 35 | 230 | 50 | 9 | 92 x 92 x 25 | ||
| AD0922ABN | 35 | 230 | 50 | 9 | |||
| AD0922ASH | 49 | 230 | 50 | 12 | |||
| AD0922ABH | 49 | 230 | 50 | 12 | |||
| AD0921ASN | 43 | 115 | 60 | 11 | |||
| AD0921ABN | 43 | 115 | 60 | 11 | |||
| AD0921ASH | 60 | 115 | 60 | 12 | |||
| AD0921ABH | 60 | 115 | 60 | 12 | |||
| AD1122ASN | 61 | 230 | 50 | 13 | 108 x 108 x 25 | ||
| AD1122ABN | 61 | 230 | 50 | 13 | |||
| AD1122ASH | 75 | 230 | 50 | 15 | |||
| AD1122ABH | 75 | 230 | 50 | 15 | |||
| AD1121ASN | 64 | 115 | 60 | 14 | |||
| AD1121ABN | 64 | 115 | 60 | 14 | |||
| AD1121ASH | 82 | 115 | 60 | 15.5 | |||
| AD1121ABH | 82 | 115 | 60 | 15.5 | |||
| AD1223ASH | 120 | 380 | 50 | 15.5 | 120 x 120 x 25 | ||
| AD1223ABH | 120 | 380 | 50 | 15.5 | |||
| AD1222ASN | 108 | 230 | 50 | 14 | |||
| AD1222ABN | 108 | 230 | 50 | 14 | |||

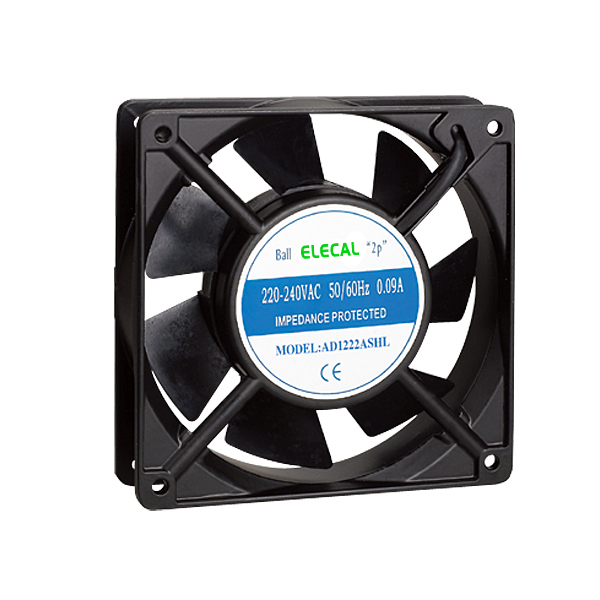

| AD1222ASH | 125 | 230 | 50 | 16 | |||
| AD1222ABH | 125 | 230 | 50 | 16 | |||
| AD1221ASN | 115 | 115 | 60 | 15 | |||
| AD1221ABN | 115 | 115 | 60 | 15 | |||
| AD1221ASH | 130 | 115 | 60 | 16.5 | |||
| AD1221ABH | 130 | 115 | 60 | 16.5 | |||
| AD1233ASN | 135 | 380 | 43 | 21 | 120 x 120 x 38 | ||
| AD1233ABN | 135 | 380 | 43 | 21 | |||
| AD1233ASH | 160 | 380 | 48 | 22 | |||
| AD1233ABH | 160 | 380 | 48 | 22 | |||
| AD1232ASN | 140 | 230 | 44 | 21 | |||
| AD1232ABN | 140 | 230 | 44 | 21 | |||
| AD1232ASH | 155 | 230 | 49 | 22 | |||

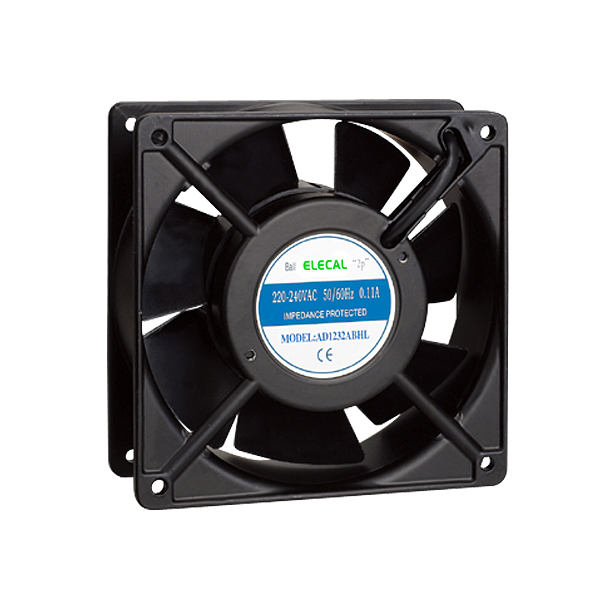

| AD1232ABH | 155 | 230 | 49 | 22 |
| Type | Air flow(m3/h) | Nominal voltage (V) | Frequency (Hz) | Power input (Watt) | Sintec~ball bearings | Sleeve bearings | Dimension(mm) |
|---|---|---|---|---|---|---|---|
| AD1231ASN | 140 | 115 | 44 | 22 | 120 x 120 x 38 | ||
| AD1231ABN | 140 | 115 | 44 | 22 | |||
| AD1231ASH | 165 | 115 | 49 | 23 | |||
| AD1231ABH | 165 | 115 | 49 | 23 | |||
| AD125FZy3-S | 230 | 380 | 50 | 26 | 135 x 135 x 32 | ||
| AD125FZy3-B | 230 | 380 | 50 | 26 | |||

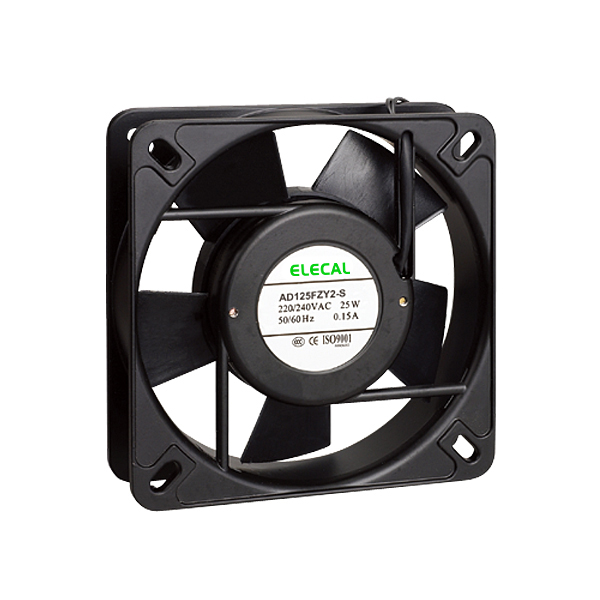

| AD125FZy2-S | 180 | 230 | 50 | 24.5 | |||
| AD125FZy2-B | 180 | 230 | 50 | 24.5 | |||
| AD125FZy2-S | 210 | 230 | 50 | 25 | |||
| AD125FZy2-B | 210 | 230 | 50 | 25 | |||
| AD125FZy1-S | 190 | 115 | 60 | 24.5 | |||
| AD125FZy1-B | 190 | 115 | 60 | 24.5 | |||
| AD125FZy1-S | 240 | 115 | 60 | 26 | |||
| AD125FZy1-B | 240 | 115 | 60 | 26 | |||
| AD1231MABH | 94/2.70 | 115 | 50 | 19 | 120 x 120 x 38 | ||
| AD1231MABH | 112/3.20 | 115 | 60 | 18 | |||
| AD1232MABH | 94/2.70 | 230 | 50 | 20 | |||
| AD1232MABH | 112/3.20 | 230 | 60 | 17 | |||
| AD1233MABH | 94/2.70 | 380 | 50 | 32 | |||
| AD1553ABN | 280 | 380 | 50 | 26 | 172 x 150 x 51 | ||
| AD1553ABH | 340 | 380 | 50 | 29 | |||

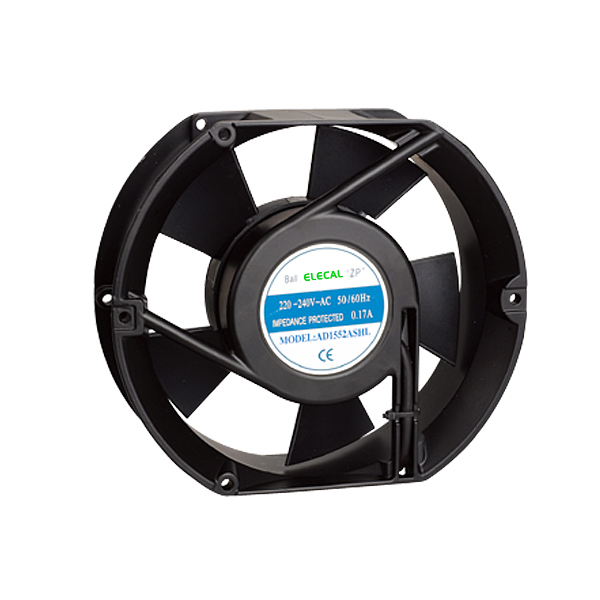

| AD1552ASN | 280 | 230 | 50 | 24 | |||
| AD1552ABN | 280 | 230 | 50 | 24 | |||
| AD1552ABH | 340 | 230 | 50 | 26.5 | |||
| AD1551ABN | 320 | 115 | 60 | 26 | |||
| AD1551ABH | 370 | 115 | 60 | 28 | |||
| AD15503ABN | 280 | 380 | 50 | 26 | 150 x 150 x 50 | ||
| AD15503ABH | 340 | 380 | 50 | 29 | |||
| AD15502ASN | 280 | 230 | 50 | 24 | |||
| AD15502ABN | 280 | 230 | 50 | 24 | |||

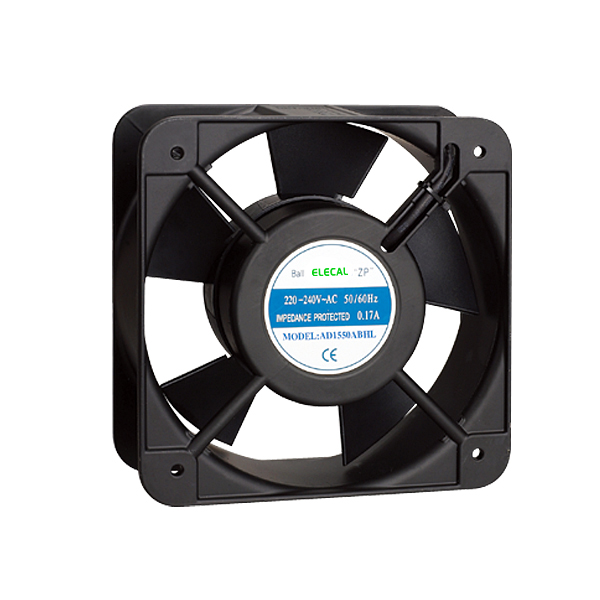

| AD15502ABH | 340 | 230 | 50 | 26.5 | |||
| AD15501ABN | 320 | 115 | 60 | 26 | |||
| AD15501ABH | 370 | 115 | 60 | 28 | |||
| AD1753ABN | 280 | 380 | 50 | 26 | 172 x 172 x 51 | ||
| AD1753ABH | 340 | 380 | 50 | 28 | |||
| AD1752ASN | 280 | 230 | 50 | 24.5 | |||
| AD1752ABN | 280 | 230 | 50 | 24.5 | |||

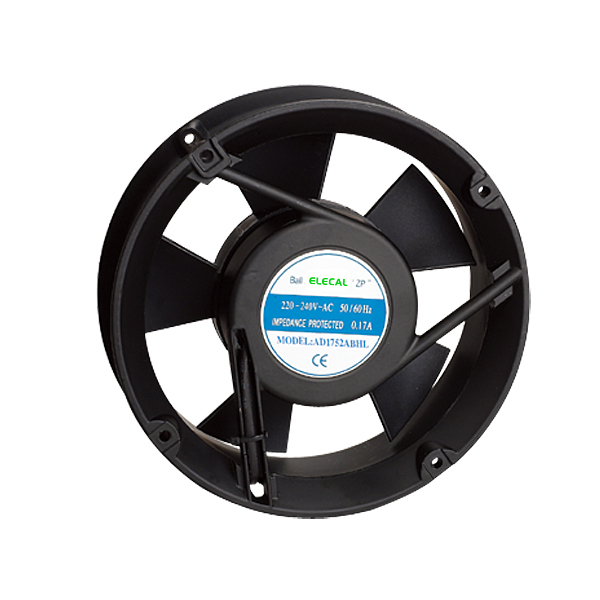

| AD1752ABH | 340 | 230 | 50 | 28 | |||
| AD1751ABN | 320 | 115 | 60 | 26 | |||
| AD1751ABH | 370 | 115 | 60 | 28 | |||
| AD145FZy3-S | 300 | 380 | 50 | 29 | 172 x 145 x 38 | ||
| AD145FZy3-S | 350 | 380 | 50 | 29 |
| Type | Air flow(m3/h) | Nominal voltage (V) | Frequency (Hz) | Power input (Watt) | Sintec~ball bearings | Sleeve bearings | Dimension (mm) |
|---|---|---|---|---|---|---|---|
| AD145FZy2-S | 300 | 230 | 50 | 26 | 172 x 145 x 38 | ||
| AD145FZy2-S | 300 | 230 | 50 | 27 | |||
| AD145FZy2-S | 350 | 230 | 50 | 29 | |||
| AD145FZy1-S | 330 | 115 | 60 | 27 | |||
| AD145FZy1-S | 390 | 115 | 60 | 29 | |||
| AD150FZY1-D | 216 | 115 | 50 | 25 | 150 x 160 x 60 | ||
| AD150FZY2-D | 216 | 220 | 50 | 30 | |||
| AD150FZY7-D/(1) | 216 | 380 | 50 | 35 | |||
| AD150FZY4-D/(3) | 216 | 380 | 50 | 40 | |||
| AD200FZY2-D | 459 | 220 | 50 | 65 | 200 x 210 x 71 | ||
| AD200FZY7-D/(1) | 459 | 380 | 50 | 65 | |||
| AD200FZY4-D/(3) | 459 | 380 | 50 | 65 | |||
| AD1863ABM | 420 | 380 | 50 | 48 | 180 x 180 x 60 | ||
| AD1863ABH | 420 | 380 | 50 | 49 | |||
| AD1862ABN | 470 | 230 | 50 | 45 | |||
| AD1862ABM | 420 | 230 | 50 | 48 | |||
| AD1863ABH | 450 | 230 | 50 | 49 | |||

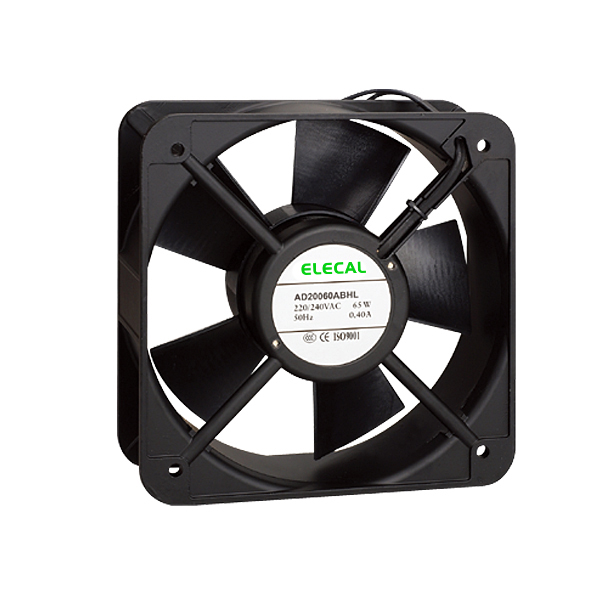

| AD20060MBL-1 | 245 | 115 | 50 | 65 | 200 x 200 x 60 | ||
| AD20060MBL-2 | 285 | 230 | 50 | 70 | |||
| AD20060MBL-3 | 285 | 380 | 50 | 70 | |||
| AD2363ABN | 700 | 380 | 50 | 68 | 230 x 200 x 65 | ||
| AD2363ABM | 630 | 380 | 50 | 65 | |||
| AD2363ABH | 850 | 380 | 50 | 65 | |||
| AD2362ABN | 700 | 230 | 50 | 68 | |||
| AD2362ABM | 630 | 230 | 50 | 58 | |||

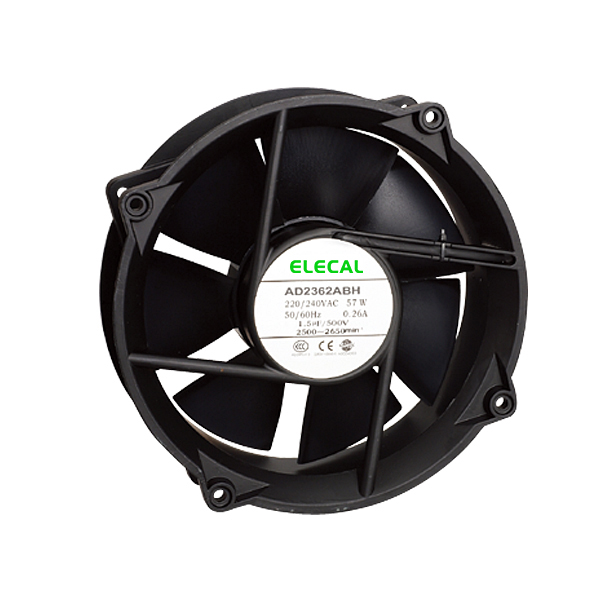

| AD2362ABH | 850 | 230 | 50 | 65 | |||
| AD2283ABN | 455 | 380 | 50 | 30 | 225 x 225 x 80 | ||
| AD2283ABH | 1030 | 380 | 50 | 80 | |||
| AD2282ABN | 520 | 230 | 50 | 30 | |||
| AD2282ABM | 820 | 230 | 50 | 64 | |||
| AD2282ABH | 1030 | 230 | 50 | 80 | |||
| AD2281ABN | 520 | 115 | 60 | 28 | |||
| AD2281ABM | 1030 | 115 | 60 | 80 | |||
| ADF4A2-300 | 1800 | 230 | 50 | 73 | 300 | ||
| ADF4B2-300 | 2100 | 230 | 60 | 100 | |||
| ADF4A3-300 | 1800 | 230 | 50 | 65 | |||
| ADF4B3-300 | 2100 | 230 | 60 | 80 | |||
| ADF4A2-350 | 3100 | 230 | 50 | 130 | 350 | ||
| ADF4B2-350 | 3500 | 230 | 60 | 190 | |||
| ADF4A3-350 | 3100 | 380 | 50 | 115 | |||
| ADF4B3-350 | 3600 | 380 | 60 | 160 |
| Type | Air flow(m3/h) | Nominal voltage (V) | Frequency (Hz) | Power input (Watt) | Sintec~ball bearings | Sleeve bearings | Dimension (mm) |
|---|---|---|---|---|---|---|---|
| AD300A2LBL (300FZY2-D) | 1320 | 220 | 50 | 80 | 300 x 300 x 100 | ||
| AD300A3LBL (300FZY3-D) | 1320 | 380 | 50 | 80 | |||
| AD300A3LBL (300FZY4-D) | 1320 | 380 | 50 | 80 | |||
| AD300A2HBL (300FZY6-D) | 2040 | 220 | 50 | 200 | |||
| AD300A3HBL (300FZY7-D) | 2040 | 380 | 50 | 180 | |||
| AD300A3HBL (300FZY8-D) | 2040 | 380 | 50 | 200 | |||
| AD250A2LBL (250FZY2-D) | 720 | 220 | 50 | 40 | 250 x 250 x 90 | ||
| AD250A3LBL (250FZY3-D) | 720 | 380 | 50 | 40 | |||
| AD250A3LBL (250FZY4-D) | 720 | 380 | 50 | 40 | |||
| AD250A3HBL (250FZY6-D) | 1200 | 220 | 50 | 100 | |||
| AD250A3HBL (250FZY7-D) | 1200 | 380 | 50 | 100 | |||
| AD250A3HBL (250FZY8-D) | 1200 | 380 | 60 | 100 | |||
| AD2260A1HSL-1 | 335 | 110 | 50/60 | 77/55 | 200 x 200 x 60 | ||
| AD2260A1HBL-1 | 335 | 110 | 50/60 | 77/55 | |||
| AD2260A2HSL-1 | 335 | 220 | 50/60 | 72/50 | |||
| AD2260A2HBL-1 | 335 | 220 | 50/60 | 72/50 |
