Specifications: |
|
|

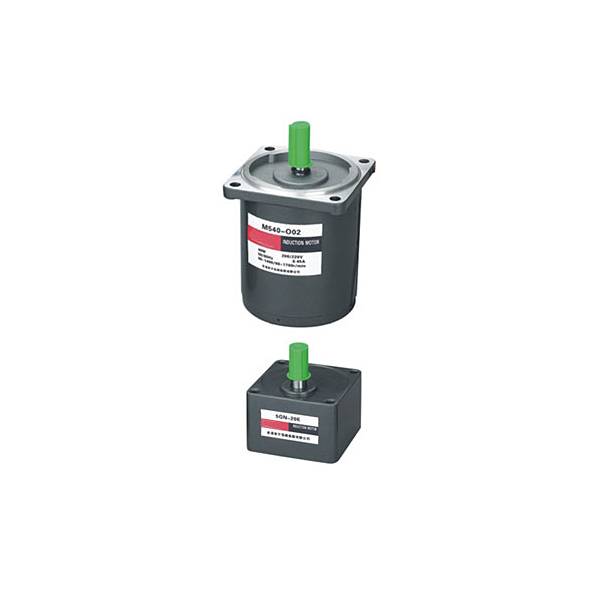

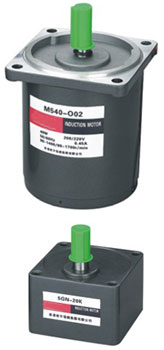

Motor 5IK6GN-A (CS) |
Gear head 5GN K 5GN |
The figure in paranthese indicates dimension of speed control motor Note: Gear shaft parameters :diameter (¢10.8),modulus(0.6),helical angle (25°) force angle (20°),length(17) |
|
|
Wire diagram singal phase |
Decimal gear head 5GN10X |

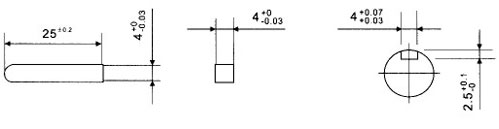

Key and key slot Applied in 5GN |
| |
