Specifications: |
|
|

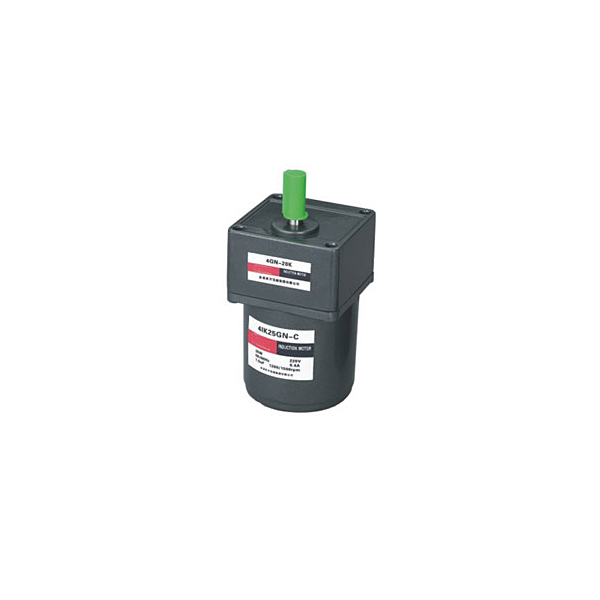

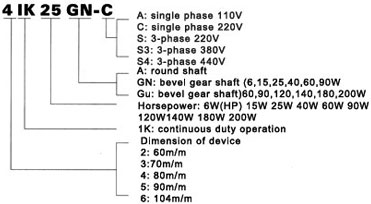

Motor 4IK6GN-A (CS) |
Gear head 4GN K 4GN |
The figure in paranthese indicates dimension of speed control motor Note: Gear shaft parameters :diameter (¢7.9),modulus(0.6),helical angle (25°) force angle (20°),length(13.5) |
|
|
Wire diagram singal phase |
Decimal gear head 4GN10X |

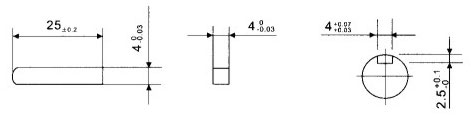

Key and key slot Applied in 4GN |
| |
