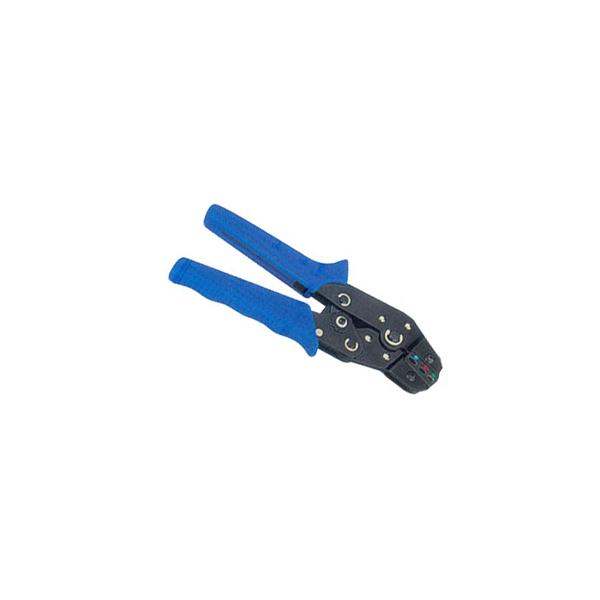

Mimi european style crimping pliers for terminals

Asia :

　　　　　　　　　　　　Europe & Africa :

Middle East Area :

　　　　Oceania & America :

View Inquiry Basket

Comparison:

Frame only 7.5"(185mm)
For crimping type cable
specification:1.0mm² AWG28-18
Weight:0.37kg


Model
SN-02H		6.5mm	5.4mm		1.72mm
SN-02H	55,58,59,62,140,142,223,303,400,Fiber optic,Belden8279
SN-03H	4.5mm	3.25mm	3.84mm	2.0mm	1.72mm	1.0mm
SN-03H	122,174,178,180,187,188,195,316,Fiber optic,Belden8279

SN-02C For insulated cable link+butt connectors



SN-02 For non-insulated cable links	SN-02B non-insulated plugs connectors	SN-02WF for wire-end ferrules	SN-02H/SN-03H

Technical parameter:

Model	Range of application	Capacity mm²	AWG	links length weight
Model	Range of application	Capacity mm²	AWG	Length mm	weight kg
SN-02C	Insulated cable links+butt connectors	0.25-2.5	27-13	190	0.37
SN-02	Non-insulated cable links	0.25-2.5	27-13	190	0.37
SN-02WF	Non-insulated cable links	0.14-2.5	26-13	190	0.37
HS-02B	Non-insulated plugs connectors	0.1-2.5	27-13	190	0.37



SN-1101 for non-insulated plugs connectors	SN-06WF/SN-05WF For wire-end ferrules	SN-0325 for non-insulated cable links

SN-16WF For Wire-end ferrules	SN-0725 for insulated cable link+butt connectors	SN-02W2C for wire-end ferrules+insulaed cable link

Technical parameter:

Model	Range of application	Capacity mm²	AWG	links length weight
Model	Range of application	Capacity mm²	AWG	Length mm	weight kg
SN-1101	Non-insulated plugs connectors	0.1-2.5	27-13	190	0.4
SN-0325	Non-insulated cable links	0.5-2.5	20-13	190	0.4
SN-0725	Non-insulated cable links+butt connectors	0.75-2.5	20-13	190	0.4
Sn-05WF	Wire-end ferrules	0.5-6	20-10	190	0.4
SN-06WF	Wire-end ferrules	0.25-6	30-10	190	0.4
SN-16WF	Wire-end ferrules	6-16	10-5	190	0.4
SN-02WF2C	Wire-end ferrules+insulaed cable links	0.5-2.5	20-13	190	0.4
