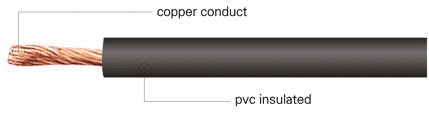

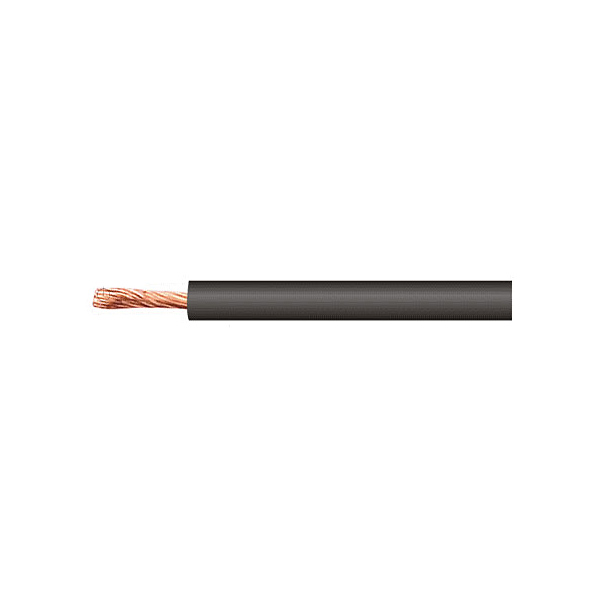

Wire Cable Copper-conductor PVC insulated flexible wire of environmental protection

This product is suitable for the circuits of electric equipment, instrument, meter,telecommunication equipment, power lighting of AC rated voltage 450/750V and below or DC 1000V and below, is available in exposed layout or concealed layout.
The permissible continuous operating temperature of conductor shall not exceed +70^oC, and the installation temperature of wire shall not be lower than -15^oC.

Product standard :JB8734-1998

Technical parameter

Type	Cross-section	Type	Insulation with	the MAX resistance in 20oC
BVR	1	7/0.43	0.6	18.1
	1.5	7/0.52	0.7	12.1
	2.5	19/0.41	0.8	7.41
	4	19/0.52	0.8	4.61
	6	19/0.64	0.8	3.08
	10	49/0.52	1.0	1.83
	16	49/0.64	1.0	1.15
	25	98/0.58	1.2	0.727
	35	133/0.58	1.2	0.524
	50	133/0.68	1.4	0.387
	70	189/0.68	1.4	0.268
	95	295/0.64	1.6	0.193
	120	370/0.64	1.6	0.153
	150	407/0.68	1.6	0.124
