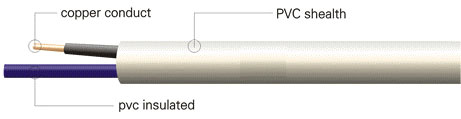

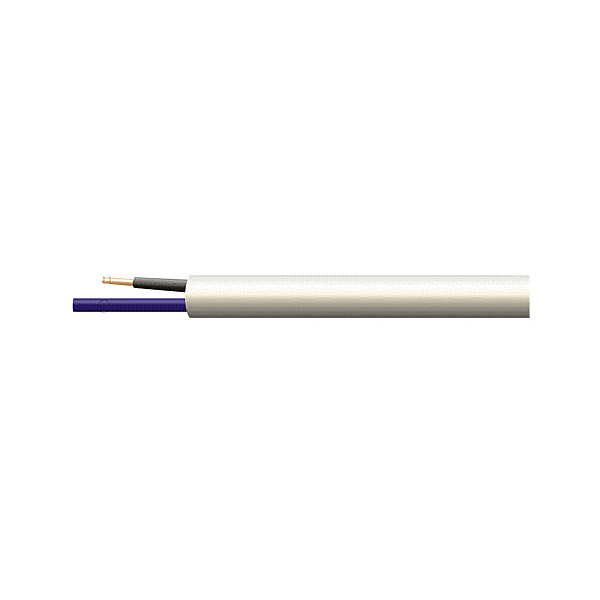

BVV BLVV Series Insulated Wire
This product is suitable for the circuits of electric equipment,instrument, meter,telecommunication equipment,power lighting of AC rated voltage 300V/500V and below or DC 1000V and below, is available in exposed layout or concealed layout. The permissible continuous operating temperature of conductor shall not exceed +70oC,and the installation temperature of wire shall not be lower than -15oC.
Product standard:JB8734.2-1998
Technical parameter
Cross Sectiion | Cross-section | Standard Insulation width | Standard Shealth width | the MAX resistance in 20oC | ||
---|---|---|---|---|---|---|
copper | copper with AL gavanized | BLV | ||||
0.75 | 1 | 0.6 | 0.8 | 24.5 | 24.8 | - |
1.0 | 1 | 0.6 | 0.8 | 18.1 | 18.2 | - |
1.5 | 1 | 0.7 | 0.8 | 12.1 | 12.2 | - |
1.5 | 7 | 0.7 | 0.8 | 12.1 | 12.2 | - |
2.5 | 1 | 0.8 | 0.8 | 7.41 | 7.56 | 12.1 |
2.5 | 7 | 0.8 | 0.8 | 7.41 | 7.56 | - |
4 | 1 | 0.8 | 0.9 | 4.61 | 4.70 | 7.41 |
4 | 7 | 0.8 | 0.9 | 4.61 | 4.70 | - |
6 | 1 | 0.8 | 0.9 | 3.08 | 3.11 | 4.61 |
6 | 7 | 0.8 | 0.9 | 3.08 | 3.11 | - |
10 | 7 | 1.0 | 0.9 | 1.83 | 1.84 | 3.08 |
