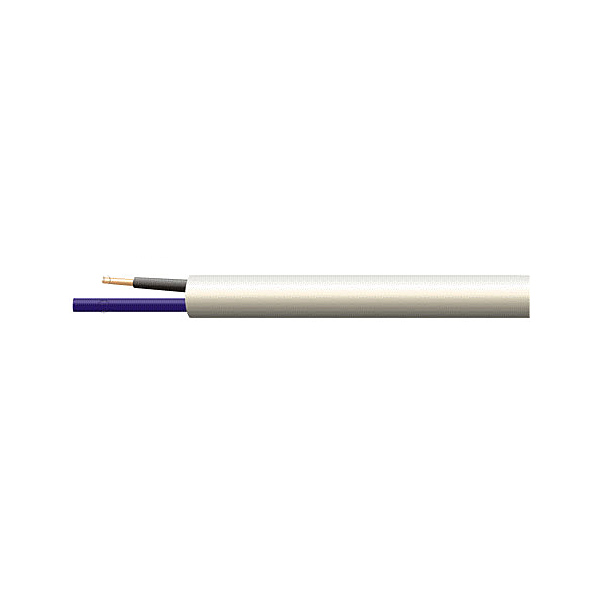

BVVB BLVVB Series Insulated Wire
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !  |

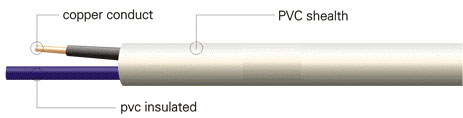

This product is suitable for the circuits of electric equipment,instrument, meter,telecommunication equipment, power and lighting of AC rated voltage 300V/500V and below, is available in fixed layout.The permissible continuous operating temperature of conductor shall not exceed+70oC,and the installation temperature of wire shall not be lower than -15oC.
Product standard:JB8734.2-1998
Technical parameter
| No×Cross Sectiion | Cross-section | Standard Insulation width | Standard Shealth width | the MAX resistance in 20oC | ||
|---|---|---|---|---|---|---|
| copper | copper with AL gavanized | BLV | ||||
| 2×0.75 | 1 | 0.6 | 0.9 | 24.5 | 24.8 | - |
| 2×1.0 | 1 | 0.6 | 0.9 | 15.1 | 18.2 | - |
| 2×1.5 | 1 | 0.7 | 0.9 | 12.1 | 12.2 | - |
| 2×2.5 | 1 | 0.8 | 1.0 | 7.41 | 7.56 | 12.1 |
| 2×4 | 1 | 0.8 | 1.0 | 4.61 | 4.70 | 7.41 |
| 2×4 | 7 | 0.8 | 1.0 | 4.61 | 4.70 | - |
| 2×6 | 1 | 0.8 | 1.1 | 3.08 | 3.11 | 4.61 |
| 2×6 | 7 | 0.8 | 1.1 | 3.08 | 3.11 | - |
| 2×10 | 7 | 1.0 | 1.0 | 1.83 | 1.84 | 3.08 |
| 3×0.75 | 1 | 0.6 | 0.9 | 24.5 | 24.8 | - |
| 3×1.0 | 1 | 0.6 | 0.9 | 18.1 | 18.2 | - |
| 3×1.5 | 1 | 0.7 | 0.9 | 12.1 | 12.2 | - |
| 3×2.5 | 1 | 0.8 | 1.0 | 7.41 | 7.56 | 12.1 |
| 3×4 | 1 | 0.8 | 1.1 | 4.61 | 4.70 | 7.41 |
| 3×4 | 7 | 0.8 | 1.1 | 4.61 | 4.70 | - |
| 3×6 | 1 | 0.8 | 1.1 | 3.08 | 3.11 | 4.61 |
| 3×6 | 7 | 0.8 | 1.1 | 3.08 | 3.11 | - |
| 3×10 | 7 | 1.0 | 1.2 | 1.83 | 1.84 | 3.08 |
