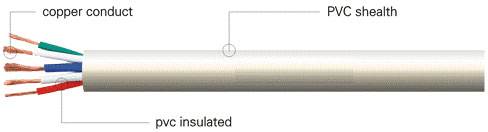

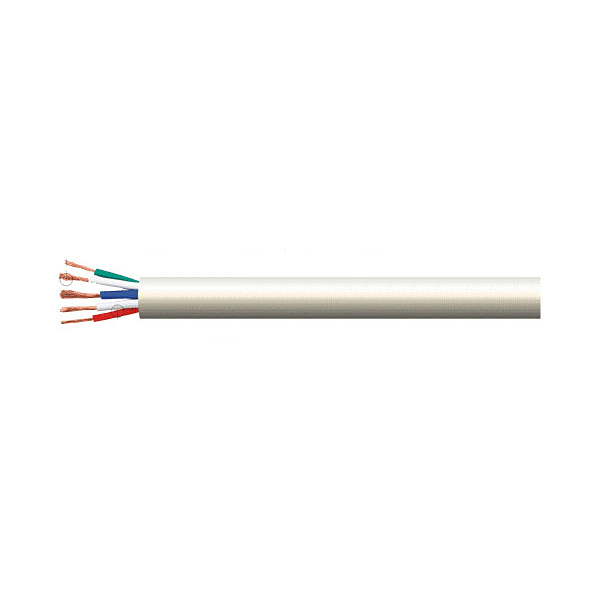

RVV RVVB Series Insulated Wire
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket ! |
This product is suitable for electric equipment, lighting,automated system of AC rated voltage 300/750V as well as 300/500V and below, applied to movable connection in the dry or damp locations. The permissible continuous operating temperature of conductor shall not exceed +70oC,and the installation temperature of wire shall not be lower than-15oC.
Product standard:JB8734-1998
Technical parameter
| No×Cross Sectiion | Types | Insulation width | Shealth width | the MAX resistance in 20oC | |
|---|---|---|---|---|---|
| copper | copper with AL gavanized | ||||
| 2×0.5 | 28/0.15 | 0.5 | 0.6 | 39.0 | 40.1 |
| 2×0.75 | 42/0.15 | 0.5 | 0.6 | 26.0 | 26.7 |
| 3×0.5 | 28/0.15 | 0.5 | 0.6 | 39.0 | 40.1 |
| 3×0.75 | 42/0.15 | 0.5 | 0.6 | 26.0 | 26.7 |
| 2×0.75 | 42/0.15 | 0.6 | 0.8 | 26.0 | 26.7 |
| 2×1 | 32/0.2 | 0.6 | 0.8 | 19.5 | 20.0 |
| 2×1.5 | 48/0.2 | 0.7 | 0.8 | 13.3 | 13.7 |
| 2×2.5 | 77/0.2 | 0.8 | 1.0 | 7.98 | 8.21 |
| 3×0.75 | 42/0.15 | 0.6 | 0.8 | 26.0 | 26.7 |
| 3×1 | 32/0.2 | 0.6 | 0.8 | 19.5 | 20.0 |
| 3×1.5 | 48/0.2 | 0.7 | 0.9 | 13.3 | 13.7 |
| 3×2.5 | 77/0.2 | 0.8 | 1.1 | 7.98 | 8.21 |
| 4×0.75 | 42/0.15 | 0.6 | 0.8 | 26.0 | 26.7 |
| 4×1 | 32/0.2 | 0.6 | 0.9 | 19.5 | 20.0 |
| 4×1.5 | 48/0.2 | 0.7 | 1.0 | 13.3 | 13.7 |
| 4×2.5 | 77/0.2 | 0.8 | 1.1 | 7.98 | 8.21 |
| 5×0.75 | 42/0.15 | 0.6 | 0.9 | 26.0 | 26.7 |
| 5×1 | 32/0.2 | 0.6 | 0.9 | 19.5 | 20.0 |
| 5×1.5 | 48/0.2 | 0.7 | 1.1 | 13.3 | 13.7 |
| 5×2.5 | 77/0.2 | 0.8 | 1.2 | 7.98 | 8.21 |
