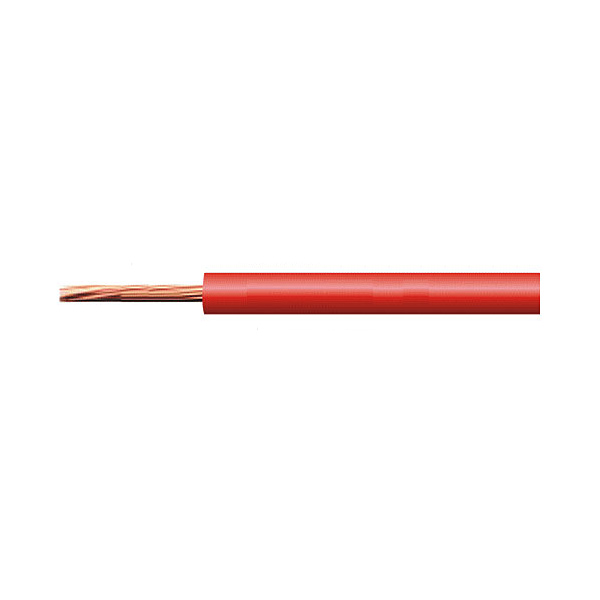

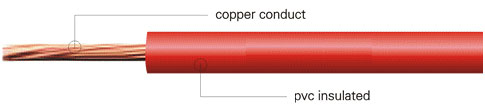

Copper-conductor PVC insulated and twisted parallel flexible wire of environmental protection

This product is applicable for usual electric appliance,miniature electric tool,instrument, meter,power lighting of AC rated voltage 300/750V as well as 450/750V and below. The permissible continuous operating temperature of conductor shall not exceed +70^oC, and the installation temperature of wire shall not be lower than -15^oC.

Product standard:GB5023-1997

Technical parameter

Hated voltage	Cross-section	Type	Insulation width	the Max resistance in 20oC
300/500	0.3	16/0.15	0.6	69.2
	0.4	23/0.15	0.6	48.2
	0.5	28/0.15	0.6	39.0
	0.75	42/0.15	0.6	26.0
	1	32/0.2	0.6	19.5
450/750	1.5	48/0.2	0.7	13.3
	2.5	77/0.2	0.8	7.98
	4	77/0.26	0.8	4.95
	6	84/0.3	0.8	3.30
	10	84/0.4	1.0	1.91
	16	126/0.40	1.0	1.21
	25	196/0.40	1.2	0.780
	35	276/0.40	1.2	0.554
	50	396/0.40	1.4	0.386
	70	360/0.50	1.4	0.272
