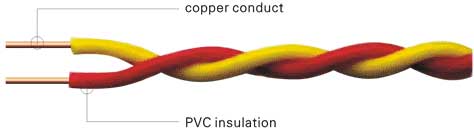

RVB RVS Series Insulated Wire
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket ! |
This product is suitable for the power supply connection of lighting ,radio set, loudspeaker,portable usual electric equipment of AC 300/300V and below. The permissible continuous operating temperature of wire shall not be lower than -15oC.
Product standard: JB8734.3-1998
Technical parameter
| Type | NO×cross section | Type | Insulation width | the Max resistance in 20oC |
|---|---|---|---|---|
| RVB | 2×0.3 | 16/0.15 | 0.6 | 69.2 |
| 2×0.4 | 23/0.15 | 0.6 | 48.2 | |
| 2×0.5 | 28/0.15 | 0.8 | 39.0 | |
| 2×0.75 | 42/0.15 | 0.8 | 26.0 | |
| 2×1.0 | 32/0.20 | 0.8 | 19.5 | |
| RVS | 2×0.3 | 16/0.15 | 0.6 | 69.2 |
| 2×0.4 | 23/0.15 | 0.6 | 48.2 | |
| 2×0.5 | 28/0.15 | 0.8 | 39.0 | |
| 2×0.75 | 42/0.15 | 0.8 | 26.0 |
