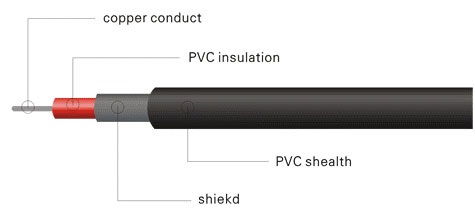

Copper-conductor PVC insulation shielded PVC sheathed flexible wire(flame retardant)

The products can be applied to wiring system that requires anticlutter such as building automation control system,guard against theft and alarm system,fire-fighting system,three-meter autotranscription system,communications,audio frequency,audio system, instruments,electronic equipment, automated assembly and so on.
Product standard: JB8734.5-1998
Technical parameter

core cross-section(mm2)	constru-ction(NO/mm)	insulation	Shealth	Average o.d.		The MAX resistancein 20oC MΩ/KM	The min insulation resistance MΩ/KM
		Standard width(mm)	Standard width(mm)	Min(nn)	Max(mm)
2×0.12	7/0.15	0.4	3.7	3.7	4.9	158.0	0.016
2×0.2	12/0.15	0.4	4.1	4.1	5.3	92.3	0.013
2×0.3	16/0.15	0.5	4.8	4.8	6.2	69.2	0.014
2×0.4	23/0.15	0.5	5.1	5.1	6.6	48.2	0.013
2×0.5	28/0.15	0.5	5.3	5.3	6.8	39.0	0.012
2×0.75	42/0.15	0.5	5.8	5.8	7.4	26.0	0.010
2×1.0	32/0.20	0.6	6.4	6.4	8.2	19.5	0.010
2×1.5	48/0.2	0.8	7.3	7.3	9.2	13.3	0.009
