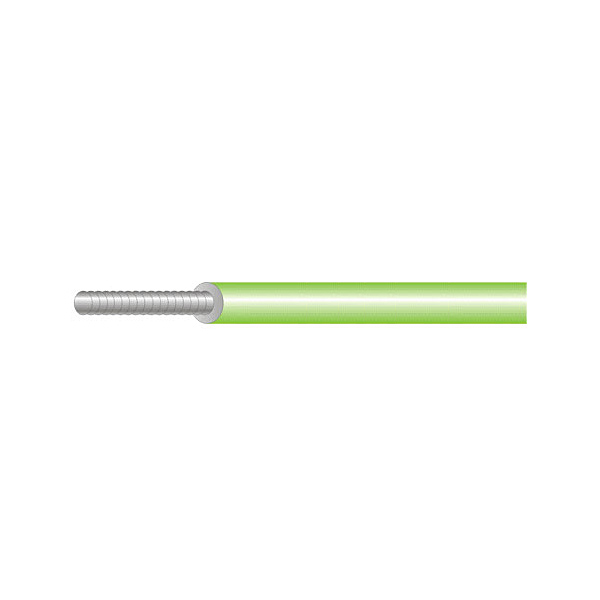

1371-1609 Series Teflon Wire
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !  |
Description
1.Rated temperature :-60±105oC
2.1609 wire rated voltage:125v.

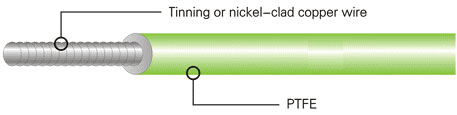

3.conductor:single or multiple twists made of 36-16 AWG.(0.013-1.31mm2)tin-coated copper or naked copper
4.Insulation:FEP or ETFE Teflon film wrapped,with optional color schemes such as white, black ,red ,blue, grey,yellow,green,brown,orange etc.
5.Resistant to acids,alkalis,oils,flame retardant,fire resistance,and low smoke,no halogen.
Applicable range
Widely applied in aviation; metallurgy and petroleum industry as well as applied in other products such as:electronic
instrument&device,electrical appliance,lightying equipments, mechanical electrical,leads for transformer & electrical motor.
Technical parameter
| AWG | Conductor Spec. | Overall Dim mm±0.1 | Average Insulation Thickness mm | Min.Insulation Thickness mm | Conductor Max Resist Ω/km | |
|---|---|---|---|---|---|---|
| Section Area mm2 | Cores No./Dim NO/mm | |||||
| 36 | 0.013 | 1/0.13 | 0.42 | ≥0.14 | ≥0.125 | 1369 |
| 34 | 0.020 | 1/0.16 | 0.45 | 861 | ||
| 32 | 0.033 | 1/0.21 | 0.50 | 602 | ||
| 30 | 0.05 | 1/0.26 | 0.55 | 387 | ||
| 29 | 0.065 | 1/0.29 | 0.58 | 303 | ||
| 28 | 0.08 | 1/0.32 | 0.61 | 244 | ||
| 27 | 0.10 | 1/0.36 | 0.65 | 192 | ||
| 26 | 0.13 | 1/0.41 | 0.70 | 153 | ||
| 7/0.15 | 0.77 | |||||
| 25 | 0.16 | 1/0.45 | 0.74 | 121 | ||
| 24 | 0.22 | 1/0.511 | 0.80 | 95.8 | ||
| 7/0.20 | 0.92 | |||||
| 23 | 0.26 | 1/0.58 | 0.88 | 75.8 | ||
| 22 | 0.33 | 1/0.65 | 0.95 | 60.7 | ||
| 19/0.15 | 1.08 | |||||
| 21 | 0.42 | 1/0.72 | 1.02 | 47.6 | ||
| 20 | 0.52 | 1/0.81 | 1.11 | 38.1 | ||
| 19/0.19 | 0.28 | |||||
| 19 | 0.65 | 1/0.91 | 1.33 | ≥0.20 | ≥0.17 | 30.1 |
| 18 | 0.82 | 1/1.02 | 1.44 | 23.9 | ||
| 19/0.235 | 1.64 | |||||
| 17 | 1.04 | 1/1.15 | 1.57 | 18.9 | ||
| 16 | 1.31 | 1/1.30 | 1.72 | 15.0 | ||
| 19/0.30 | 1.96 | |||||
| 15 | 1.65 | 1/1.48 | 1.90 | 11.9 | ||
