High Voltage and High Temperature Resistant Wire Specification

Description
1Rated temperature :-100-+250^oC.
2Rated Voltage:50KV DC,25KV DC,15KV DC and 5KV DC.

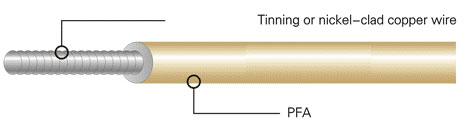

3Could be used in variable conditions.conductorsingle or multiple twists made of 24-10AWG.(0.22-5.3mm2)Nickelcoated copper or Silvercoated copper leads a smaller resistance, more large currency allowed, and match high temperature requirement more.r
4Insulation:FEP or ETFE,with optional color schemes such as white, black ,red ,blue, grey,yellow,green,brown,orange etc.
5Resistant to acids,alkalis,oils,flame retardant,fire resistance,and low smoke,no halogen.
6Resistant to acids, alkalies, oils, flame retardant,fire resistance ,and low smoke, no halogen.

Applicable range
High voltage lead wire for electronic appliance and the other equipments such as microwave oven,gas cookerand automatio.

Technical parameter

AWG	Conductor Spec.		50KVDC Overall Dim mm±0.1	25KVDC Overall Dim mm±0.1	15KVDC Overall Dim mm±0.1	5KVDC Overall Dim mm±0.1	Nickel-coated Copper Resistance ≤Ω/km	Silver-coated Copper Resistance ≤Ω/km
	Section Area mm2	Cores No./Dim NO/mm
24	0.22	7/0.20	2.70	1.90	1.72	1.60	97.8	89.2
		7/0.20	2.70	1.90	1.72	1.60
		1/0.52	2.63	1.83	1.65	1.52
22	0.33	1/0.65	2.80	2.00	1.81	1.65	67.2	56.4
		7/0.254	2.90	2.10	1.92	1.78
		19/0.15
20	0.52	1/0.82	2.95	2.15	1.96	1.83	40.1	35.3
		7/0.32	3.05	2.25	2.06	1.95
		19/0.19
18	0.82	1/1.02	3.16	2.36	2.18	2.05	24.7	22.2
		7/0.40	3.30	2.50	2.31	2.20
		19/0.235
17	1.02	1/1.15	3.30	2.50	2.31	2.21	20.0	17.6
		19/0.26	3.45	2.65	2.47	2.37
16	1.31	1/1.30	3.45	2.65	2.47	2.37	16.2	14.0
		19/0.30	3.65	2.85	2.68	2.58
14	2.08	19/0.375	4.03	3.23	3.05	2.95	9.50	8.78
12	3.31	19/0.48	4.58	3.78	3.60	3.50	6.08	5.53
10	5.30	37/0.43	5.22	4.42	4.22	4.10	3.73	3.47
