1.Application

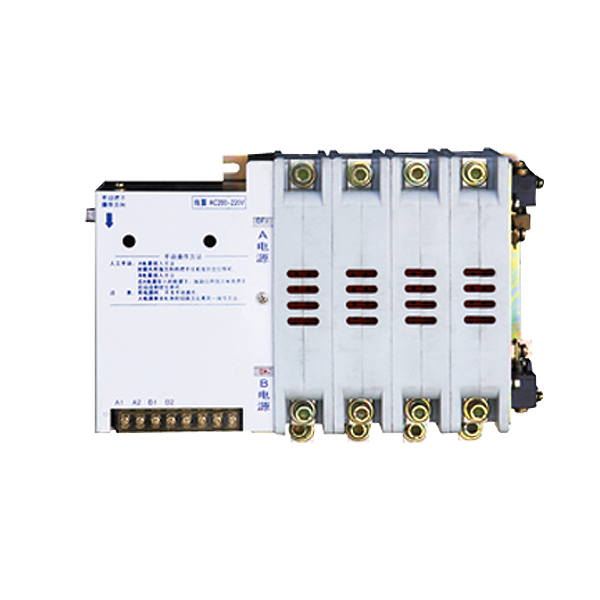

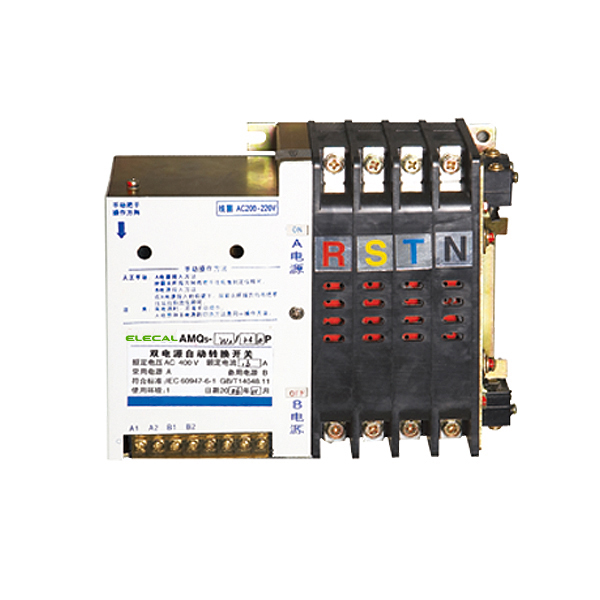

AMQ5 Series automatic transfer switch (transfer switch) is developed successfully with the help of the most advanced ATS technology in the world. This kind of transfer switch and intelligent display mated with it are mainly applied in the occasions required uninterrupted power supply like building, posts and telecommunications, mine industry, shipping and military industry. Under the necessary trend of urban power service increasing, it can meet the higher requirements of the reliable power service. This product has many features like reliable performance, small volume and simple operating etc.

2.Main function

With safe and reliable interlocking function, when the breaker is under closing state, the breaker cannot be glugged in or drawn out, you must open the breaker first to plug in or pull out. With function of reliable making and breaking main circuit and secondary circuit, besides, the device possesses self-locking function. When you draw out the breaker, the device has safe insulating isolation (your finger will not touch with the charged parts). The breaker can be mounted with various rotating manual operating mechanism and motor operating mechanism.

3.Specification

Type				AMQ5
Type AMQ5(Three-step type)				AMQ5-100			AMQ5-250			AMQ5-400			AMQ5-630		AMQ5-800
Rated voltage				AC690V DC125V
Rated current				100A			250A			400A			630A		800A
Number of cutting in				Double cut-in
Connecting * mode				In front of panel and at back of panel (Non standard * product)
Operating current	DC110V (A)			3	3	4	3	4	5	5	5	7	6	6		6
	AC100V/110V (A)			3	3	4	3	4	5	5	5	7	6	6		6
	AC200V/220V (A)			1.5	1.5	2	1.5	2	2.5	2.5	2.5	3.5	3	3		3
Trip current	DC110V			1A						1.5A			2A
	AC100V/110V			1A						1.5A			2A
	AC200V/220V			0.5A						0.7A			1A
Performance	Short-time withstanding current			5kA			10kA			12kA			15kA
	Rated conditional short-circuit current			12.5kA			25kA			30kA			37.5kA
	Making and breaking capacity			AC-33B(10Ie making 8Ie opening ) cos=0.35 DC-33B 1.1Ie making 1.1Ie opening L/R=1ms
	Changeover time	A power side	Cut in	55ms			55ms			60ms			100ms
			Cut off	20ms			20ms			25ms			30ms
		B power side	Cut in	80ms			80ms			90ms			135ms
			Cut off	20ms			20ms			25ms			30ms
	Service life			With 2500 times of electric life with 10000 times(120 times/hour) of mechanical life
	Operation circle time			120 time/hour
Auxiliary switch				A source 1C B source 1C switch capacity AC100V5A AC200V2.5A DC100V0.5A
Accessory				Protective cover breakthough absorber manual handle

Type

AMQ5

Tyep AMQ5 (Three-step type)

AMQ5-1000

AMQ5-1250

AMQ5-1600

AMQ5-2000

AMQ5-3150

AMQ5-4000

Rated voltage

AC690V DC125V

AC690V

Rated current

1000A

1250A

1600A

2000A

3150A

4000A

Number of cutting in

Double cut-in

Connecting * mode

At the back of panel in the front of panel

At the back of panel

Number of pole

2P

3P

4P

2P

3P

4P

2P

3P

4P

2P

3P

4P

2P

3P

4P

3P

Weight(kg)

30(40)

39(54)

49(64)

31(45)

40(56)

51(66)

36(50)

47(62)

59(74)

95

115

135

110

150

190

207

Operating current

DC110V (A)

6

6

8

6

6

8

7

8

9

8

10

12

10

12

14

16

AC100V/110V (A)

6

6

8

6

6

8

7

8

9

8

10

12

10

12

14

16

AC200V/220V (A)

3

3

4

3

3

4

3.5

4

4.5

4

5

6

7

8

7

8

Trip current

DC110V

2A

4A

AC100V/110V

2A

4A

AC200V/220V

1A

1A

Performance

Short-time withstanding current

22kA

25kA

35kA

50kA

50kA

Rated conditional short-circuit current

50kA

55kA

55kA

80kA

100kA

Making and breaking capacity

AC-33B(10Ie making 8Ie opening) cos=0.35 DC-33B 1.1Ie making 1.1Ie openingL/R=1ms

AC2(Ie making Ie opening) cos=0.65

Changeover time

A power side

Cut in

115ms

115ms

180ms

140ms

200ms(190)

Cut off

25ms

25ms

25ms

30ms

30ms(30)

B power side

Cut in

145ms

150ms

220ms

190ms

220ms(240)

Cut off

25ms

25ms

25ms

30ms

30ms(30)

Service life

Operation circle time

120 times/hour

30 times/hour

Auxiliary switch

A source 1C B source 1C switch capacity AC100V5A AC200V2.5A DC100V0.5A

Accessory

Protective cover breakthough absorber manual handle
