1.Application

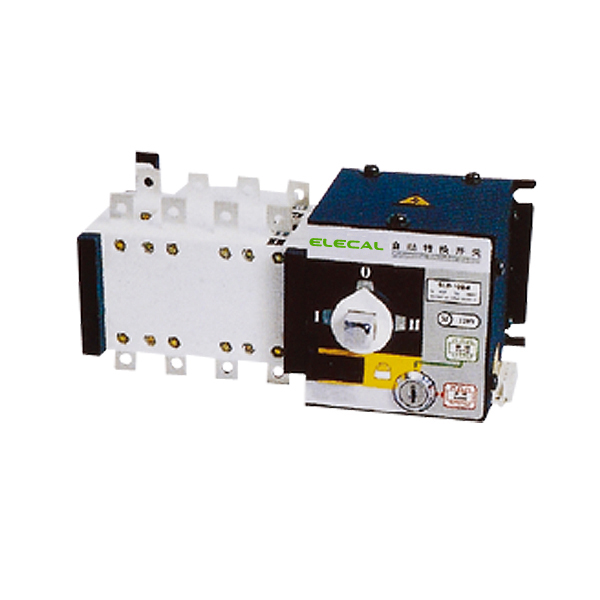

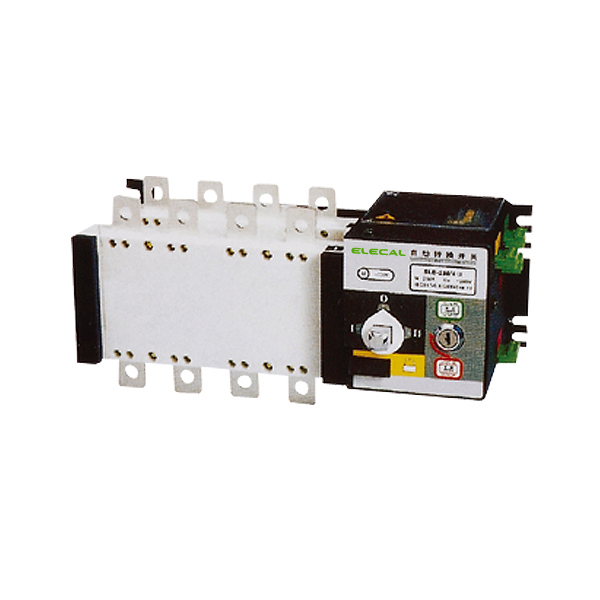

SGLD automatic change-over switch(ATSE) integrates switch and logic control, thus it is not necessary to provide external controller. This truly electromechanically integrated automatic change-over switch has the following functions such as voltage detection, frequency detection, communication interface, electrical and mechanical interlocking etc.,so, automatic control, electrical remote control and emergency manual control can be performed.
The operation is carried out through the logic control board, which gives various commands to control the motor and gear-box. the motor drives the accelerator which can take switch-spring power accmulating and instantaneous release, swiftly turns making and breaking the circuit or makes circuit switching, the visible operation status can help you to perform safe separation, increasing extremely the various electrical and mechanical performance.
Which the shell of switch SGLD is made of different materials: the control section is made of metal, but the switching section is made of glass-fibre unsaturated polyester resin, having stronger dielectric property and protective capability as well as safe operation performance.
This kind of switch is suitable for the automatic changeover of the main power source and the secondary power source of the power supply system of the automatic change-over and safe separation of the 2 sets of load-equipment. This kind of switch has a beautiful, novel and simple structure, a small volume but complete functions, being the best choice among congeneric of products.
SGLD series had been already passed the detection of EMC.

2.Specification

Conventional thermal current lth(A)				100A					160A
Rated current In(A)				20A	40A	63A	80A	100A	125A	160A
Rated impulse withstand voltage Ui(V)				500	500	500	500	500	500	500
Dielectric strength(V)				5000	5000	5000	5000	5000	5000	5000
Rated surge-resistant voltage Uimp kV(installed category IV)				8	8	8	8	8	8	8
Rated working current		380V	AC-31	20	40	63	80	100	125	160
			AC-33	20	32	40	63	80	125	160
			AC-35	20	40	63	80	100	125	160
		220V	DC-31	20	40	63	80	100	125	160
			DC-33	20	32	40	63	80	100	125
			DC-35	20	40	63	80	100	125	160
Moter power P(380V) kW				10	20	25	30	32	63	80
Rated short-time withstand current(kA Rms)0.1S/1.0S				9/5	9/5	9/5	9/5	9/5	20/10	20/10
Rated breaking capbility(A Rms)AC33 380V				160	320	500	640	800	1000	1000
Rated making capability(A Rms)AC33 380V				200	400	630	800	1000	1250	1250
Rated short-current making capability lcm(kA peak value)				8	8	10	10	10	12	12
Mechanical durability(number of cyclic operation)				8000	8000	8000	8000	8000	5000	5000
Electric durability	COS=0.65 AC33			1500	1500	1500	1500	1500	1000	1000
Change-oner time	I-0-II or II-0-1(s)			0.5	0.5	0.5	0.5	0.5	1.0	1.0
	I-0 or II-0(s)			0.3	0.3	0.3	0.3	0.3	0.6	0.6
Power consumption of electrical control	24V(DC)(w)			50	50	50	50	50	75	75
	220V(AC)(w)			50	50	50	50	50	75	75
Moment of operation(Nm)				15	15	15	15	15	22	22
Weight(kg)	3 Poles								8.2	8.2
	4 Poles			4.2	4.3	4.4	4.5	4.5	8.7	8.7
