DZS7-25	DZS7-63

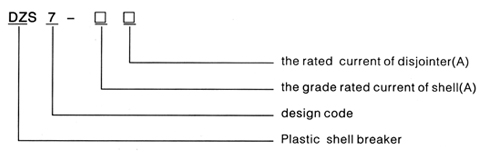

The model No. and meaning

Specification

Model	Rated current (A)	Motor output (kW)	Setting Range (A)		Weight (kg)
Model	Rated current (A)	Motor output (kW)	Thermal overload releases	Instantaneous overcurrent releases	Weight (kg)
DZS7-25	0.16		0.1-0.16	1.9	0.29
	0.24	0.06	0.16-0.24	2.9
	0.4	0.09/0.12	0.24-0.4	4.8
	0.6	0.12/0.18	0.4-0.6	7.2
	1	0.25	0.6-1	12
	1.6	0.37/0.55	1-1.6	19
	2.4	0.75	1.6-2.4	29
	3.2	1.1	2-3.2	38
	4	1.1/1.5	2.4-4	48
	5	1.5/2.2	3.2-5	60
	6	2.2	4-6	72
	8	3	5-8	96
	10		6-10	120
	13	4/5.5	8-13	156
	16	7.5	10-16	190
	20	7.5	14-20	240
	25	11	18-25	300
DZS7-63	1.6	0.37/0.55	1-1.6	19	0.76
	2.4	0.75	1.6-2.4	29
	4	1.1/1.5	2.4-4	48
	6	2.2	4-6	72
	10	3/4	6-10	120
	16	5.5/7.5	10-16	190
	25	11	16-25	300
	32	15	22-32	380
	40	18.5	28-40	480
	52	22	36-52	600
	63		45-63	600

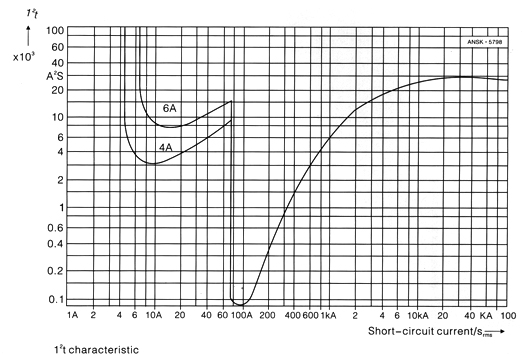

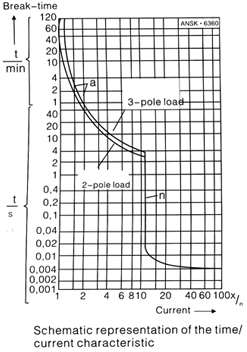

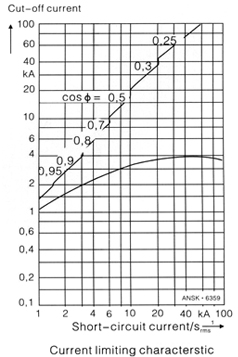

Characteristic curves DZS7-25

The characteristic curves shown here apply for a DZS7-35-ockoo circuit-breaker with a rated current of 6A a current setting range of 4 to 6A and a tripping current for the instantaneous overcurrent release of 72A, at a rated voltage of AC 50Hz, 400V.

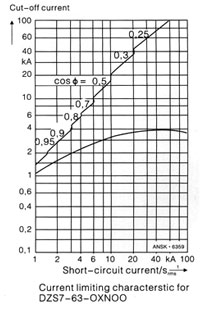

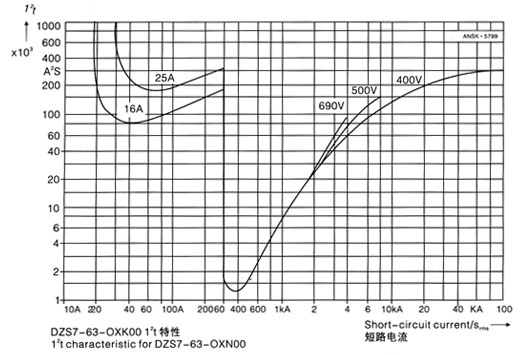

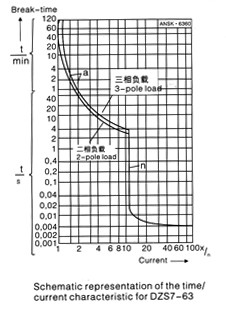

Characteristic curves DZS7-63

The characteristic curves shown here apply for a DZS7-63-OXNOO circuit breaker with a rated current of 25A and a tripping current for the instantaneous overcurrent release of 300A. at a rated voltage of AC 50HJz,400V

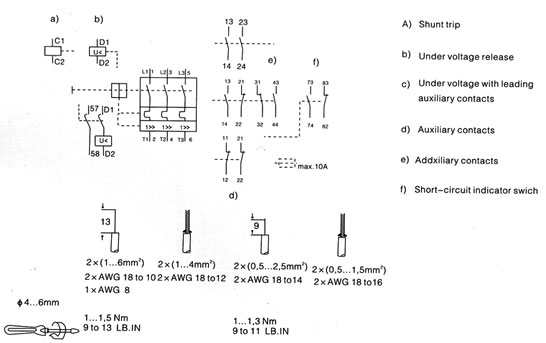

Equipment circuit diagrams

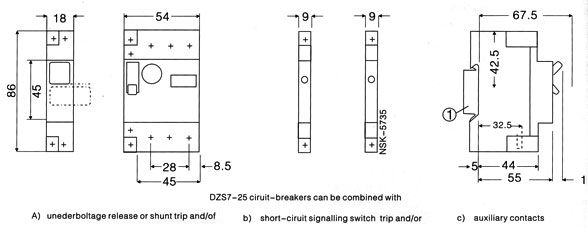

Dimension drawings DZS7-25

Dimension drawings DZS7-63
