BYT-BNC

BYT-N/50D24

Introduction

BYT series coaxial signal SPD, which is suiting to the monitoring system of close-circuit TV, security system, satellite communication system and the computer net system of coaxial signal transmission. It is designed according to the features of the signal transmission system which is low signal amplitude, high transmission frequency, weak anti-interference ability and easily to be damaged by over voltage shocked by thunder and surge. Products have lots of coaxial interface, such as BNC, N, TNC, L9, CC4 and FL10.

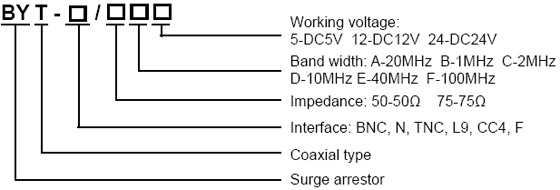

Model and meaning

Technical Parameters :

Item

BYT-BNC/

BYT-N/

BYT-TNC/

BYT-L9/

BYT-CC4/

BYT-FL10

75D24

75E24

50D24

50E24

50D24

50E24

50D24

50E24

50D24

50E24

50D
24

50E
24

75D
24

75E
24

operating voltage Un

DC24V

Maximum continuous operating voltage

DC30V

Normal dischargecurrent In

10kA (8/20 s)

Interface form

BNC

TNC

CC4

FL10

Frequency range

Protective level

<120V

Response time

≤10ns

Insertion loss

≤0.1db

Wave impedence

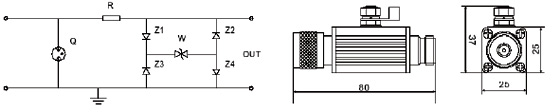

Electric principal & Dimension

Product Features
1. Large thunder flow, 10kA, 8/20S
2. Little rest voltage and insertion loss.
3. Fast response time and convenient installation.
Installation Location and Application
1. Installed at BNC, N, TNC, L9, CC4 and FL10 interface between LPZOB and LPZ3.
2. Applied in close-circuit TV, monitoring system, guard system, and the computer net system of coaxial signal transmission, satellite communication system VSAT.
